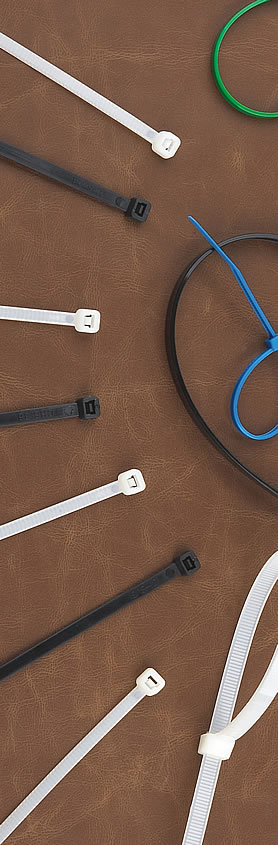

· Material:Nylon 66, 94V-2 certificated by UL.Heat-resisting,Acid & erosion control, insulate well and not apt to age.
· Operating temperature：-35℃ to 85℃.
· Color:Natural(or white, standard color),UV black and other colors are available as requested.

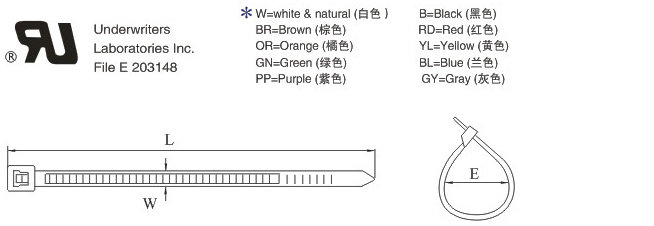

| Order No. | Length | Width(mm) | Binding range(mm) | Pull | ||
| INCH | MM | LBS | KGS | |||
| CHS-3×60 | 2 3/8" | 60 | 2.5 | 2-11 | 18 | 8 |
| CHS-3×80 | 3 3/16" | 80 | 2.5 | 2-16 | 18 | 8 |
| CHS-3×90 | 3 5/8" | 90 | 2.5 | 2-18 | 18 | 8 |
| CHS-3×100 | 4" | 100 | 2.5 | 2-22 | 18 | 8 |
| CHS-3×120 | 4 3/4" | 120 | 2.5 | 2-30 | 18 | 8 |
| CHS-3×140 | 5 1/2" | 140 | 2.5 | 2-33 | 18 | 8 |
| CHS-3×150 | 6" | 150 | 2.5 | 2-35 | 18 | 8 |
| CHS-3×160 | 6 1/4" | 160 | 2.5 | 2-40 | 18 | 8 |
| CHS-3×200 | 8" | 200 | 2.5 | 3-50 | 18 | 8 |
| CHS-4×100 | 4" | 100 | 3.5 | 3-22 | 40 | 18 |
| CHS-4×120 | 4 3/4" | 120 | 3.5 | 3-30 | 40 | 18 |
| CHS-4×140 | 5 1/2" | 140 | 3.5 | 3-33 | 40 | 18 |
| CHS-4×150 | 6" | 150 | 3.5 | 3-35 | 40 | 18 |
| CHS-4×180 | 7" | 180 | 3.5 | 3-42 | 40 | 18 |
| CHS-4×200 | 8" | 200 | 3.5 | 3-50 | 40 | 18 |
| CHS-4×220 | 8 5/8" | 220 | 3.5 | 3-58 | 40 | 18 |
| CHS-4×250 | 10" | 250 | 3.5 | 3-65 | 40 | 18 |
| CHS-4×280 | 11" | 280 | 3.5 | 3-70 | 40 | 18 |
| CHS-4×300 | 11 5/8" | 300 | 3.5 | 3-80 | 40 | 18 |
| CHS-4×370 | 14 1/2" | 370 | 3.5 | 3-102 | 40 | 18 |
| CHS-5×120 | 4 3/4" | 120 | 4.5 | 3-24 | 50 | 22 |
| CHS-5×180 | 7" | 180 | 4.5 | 3-42 | 50 | 22 |
| CHS-5×190 | 7 1/2" | 190 | 4.5 | 3-46 | 50 | 22 |
| CHS-5×200 | 8" | 200 | 4.5 | 3-50 | 50 | 22 |
| CHS-5×250 | 10" | 250 | 4.5 | 3-65 | 50 | 22 |
| CHS-5×280 | 11" | 280 | 4.5 | 3-70 | 50 | 22 |
| CHS-5×300 | 11 8/5" | 300 | 4.5 | 3-82 | 50 | 22 |
| CHS-5×350 | 13 3/4" | 350 | 4.8 | 3-90 | 50 | 22 |
| CHS-5×380 | 15" | 380 | 4.8 | 3-102 | 50 | 22 |
| CHS-5×400 | 15 3/4" | 400 | 4.8 | 3-105 | 50 | 22 |
| CHS-5×430 | 17" | 430 | 4.8 | 3-110 | 50 | 22 |
| CHS-5×450 | 17 3/4" | 450 | 4.8 | 3-130 | 50 | 22 |
| CHS-5×500 | 19 11/16" | 500 | 4.8 | 3-150 | 50 | 22 |
| CHS-8×150 | 6" | 150 | 6.8 | 3-33 | 85 | 38 |
| CHS-8×180 | 7" | 180 | 6.8 | 3-42 | 85 | 38 |
| CHS-8×200 | 8" | 200 | 6.8 | 3-50 | 85 | 38 |
| CHS-8×250 | 10" | 250 | 7.5 | 4-63 | 120 | 55 |
| CHS-8×300 | 11 5/8" | 300 | 7.5 | 4-82 | 120 | 55 |
| CHS-8×350 | 13 3/4" | 350 | 7.5 | 4-90 | 120 | 55 |
| CHS-8×370 | 14 1/4" | 370 | 7.5 | 4-98 | 120 | 55 |
| CHS-8×400 | 15 3/4" | 400 | 7.5 | 4-105 | 120 | 55 |
| CHS-8×450 | 17 3/4" | 450 | 7.5 | 4-118 | 120 | 55 |
| CHS-8×500 | 19 11/16" | 500 | 7.5 | 4-150 | 120 | 55 |
| CHS-8×550 | 21 1/16" | 550 | 7.5 | 4-160 | 120 | 55 |
| CHS-8×600 | 23 5/8" | 600 | 7.5 | 4-170 | 120 | 55 |
| CHS-8×750 | 29 9/16" | 750 | 7.5 | 4-220 | 120 | 55 |
| CHS-9×450 | 17 3/4" | 450 | 9.0 | 4-118 | 175 | 80 |
| CHS-9×530 | 20 3/4" | 530 | 9.0 | 8-155 | 175 | 80 |
| CHS-9×550 | 21 1/16" | 550 | 9.0 | 8-160 | 175 | 80 |
| *newCHS-9×600 | 23 5/8" | 600 | 9.0 | 8-170 | 175 | 80 |
| CHS-9×650 | 25 9/16" | 650 | 9.0 | 8-190 | 175 | 80 |
| CHS-9×700 | 27 1/2" | 700 | 9.0 | 10-205 | 175 | 80 |
| CHS-9×760 | 30" | 760 | 9.0 | 10-225 | 175 | 80 |
| CHS-9×920 | 36 1/4" | 920 | 9.0 | 10-265 | 175 | 80 |
| CHS-9×1020 |
40 1/6" |
1020 | 9.0 | 10-295 | 175 | 80 |
| CHS-9×1150 | 45 1/4" | 1150 | 9.0 | 10-310 | 175 | 80 |
| CHS-9×1220 | 48" | 1210 | 9.0 | 10-340 | 175 | 80 |
| CHS-9×1350 | 53" | 1350 | 9.0 | 10-380 | 175 | 80 |
| CHS-10×450 | 17 3/4" | 450 | 10.0 | 10-125 | 200 | 91 |
| CHS-10×500 | 19 11/16" | 500 | 10.0 | 12-150 | 200 | 91 |
| CHS-12×300 | 11 5/8" | 300 | 12.7 | 12-82 | 250 | 114 |
| CHS-12×400 | 15 3/4" | 400 | 12.7 | 12-105 | 250 | 114 |
| CHS-12×540 | 21 1/4" | 540 | 12.7 | 14-155 | 250 | 114 |
| CHS-12×650 | 25 9/16" | 650 | 12.0 | 14-190 | 250 | 114 |
| CHS-12×750 | 29 9/16" | 750 | 12.0 | 10-220 | 250 | 114 |
| CHS-12×780 | 30 3/4" | 780 | 12.7 | 14-230 | 250 | 114 |
| CHS-13×540 | 21 1/4" | 540 | 13.0 | 14-155 | 250 | 114 |
| CHS-1.8×100 | 4" | 100 | 1.8 | 2-22 | 14 | 6.5 |
| CHS-1.9×120 | 4 3/4" | 120 | 1.9 | 2-30 | 14 | 6.5 |
| CHS-1.9×150 | 6" | 150 | 1.9 | 2-35 | 14 | 6.5 |
| CHS-2.2×60 | 2 3/8" | 60 | 2.2 | 2-11 | 18 | 8 |
| CHS-2.2×80 | 3 3/16" | 80 | 2.2 | 2-18 | 18 | 8 |
| CHS-2.2×100 | 4" | 100 | 2.2 | 2-22 | 18 | 8 |
| CHS-2.2×120 | 4 3/4" | 120 | 2.2 | 2-30 | 18 | 8 |
| CHS-2.2×150 | 6" | 150 | 2.2 | 2-35 | 18 | 8 |
| CHS-2.2×200 | 8" | 200 | 2.2 | 3-50 | 18 | 8 |
| CHS-2.9×150 | 6" | 150 | 2.9 | 3-35 | 33 | 15 |
| CHS-2.9×200 | 8" | 200 | 2.9 | 3-50 | 33 | 15 |
| CHS-2.9×250 | 10" | 250 | 2.9 | 3-65 | 33 | 15 |
| CHS-2.9×300 | 11 5/8" | 300 | 2.9 | 3-80 | 33 | 15 |
| CHS-3.2×150 | 6" | 150 | 3.2 | 3-35 | 40 | 18 |
| CHS-3.2×180 | 7" | 180 | 3.2 | 3-42 | 40 | 18 |
| CHS-3.2×200 | 8" | 200 | 3.2 | 3-50 | 40 | 18 |
| CHS-3.2×250 | 10" | 250 | 3.2 | 3-65 | 40 | 18 |
| CHS-3.2×300 | 11 5/8" | 300 | 3.2 | 3-80 | 40 | 18 |
| CHS-3.7×350 | 13 3/4" | 350 | 3.7 | 3-90 | 40 | 18 |
| CHS-3.7×400 | 15 3/4" | 400 | 3.7 | 3-105 | 40 | 18 |
| CHS-4.2×180 | 7" | 180 | 4.2 | 3-42 | 50 | 22 |
| CHS-4.2×200 | 8" | 200 | 4.2 | 3-50 | 50 | 22 |
| CHS-4.2×250 | 10" | 250 | 4.2 | 3-65 | 50 | 22 |
| CHS-4.2×300 | 11 5/8" | 300 | 4.2 | 3-80 | 50 | 22 |
| CHS-4.2×350 | 13 3/4" | 350 | 4.2 | 3-90 | 50 | 22 |
| CHS-4.2×380 | 15" | 380 | 4.2 | 3-102 | 50 | 22 |
| CHS-4.2×400 | 15 3/4" | 400 | 4.2 | 3-105 | 50 | 22 |
| CHS-5.2×180 | 7" | 180 | 5.2 | 3-42 | 65 | 30 |
| CHS-5.2×200 | 8" | 200 | 5.2 | 3-50 | 65 | 30 |
| CHS-5.2×250 | 10" | 250 | 5.2 | 3-65 | 65 | 30 |
| CHS-5.2×300 | 11 5/8" | 300 | 5.2 | 3-80 | 65 | 30 |
| CHS-5.5×350 | 13 3/4" | 350 | 5.5 | 3-90 | 65 | 30 |
| CHS-5.5×400 | 15 3/4" | 400 | 5.5 | 3-105 | 65 | 30 |
| CHS-5.5×500 | 19 11/16" | 500 | 5.5 | 3-150 | 65 | 30 |
| CHS-6.0×270 | 10 5/8" | 270 | 6.0 | 4-65 | 65 | 30 |
| CHS-6.5×250 | 10" | 250 | 6.5 | 4-65 | 85 | 38 |
| CHS-6.5×300 | 11 5/8" | 300 | 6.5 | 4-80 | 85 | 38 |
| CHS-6.5×350 | 13 3/4" | 350 | 6.5 | 4-90 | 85 | 38 |
| CHS-6.5×400 | 15 3/4" | 400 | 6.5 | 4-105 | 85 | 38 |
| CHS-6.5×450 | 17 3/4" | 450 | 6.5 | 4-130 | 85 | 38 |
| CHS-6.5×500 | 19 11/16" | 500 | 6.5 | 4-150 | 85 | 38 |
