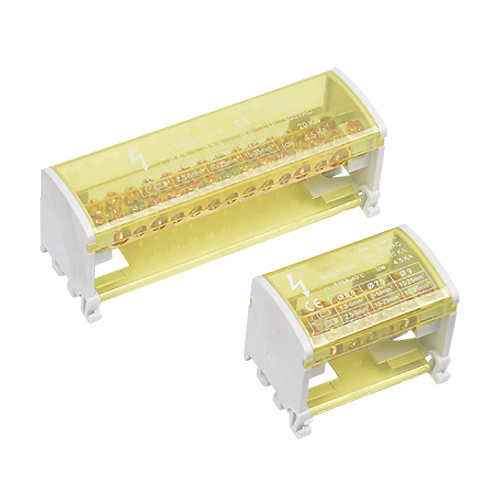

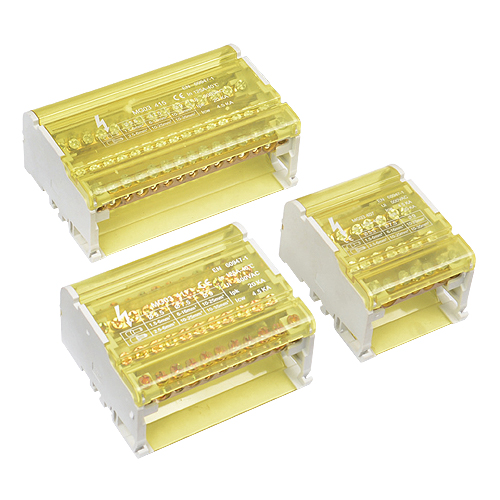

MG03 connection box is designed for distribution equipment and switchgears; it is used as bus bar and current terminal in different electrical devices.
| Howo code | Terminal Rows | Terminals/row | Dimensions | ||
| L | W | H | |||
| MG03-207 | 2 | 7 | 65 | 45.5 | 51 |
| MG03-215 | 2 | 15 | 132 | 45.5 | 51 |
| MG03-407 | 4 | 7 | 65 | 89.5 | 50 |
| MG03-411 | 4 | 11 | 100 | 89.5 | 50 |
| MG03-415 | 4 | 15 | 132 | 89.5 | 50 |
| Standard | IEC60947-7-1 |
| Frequency | 50 or 60Hz |
| Rated insulation voltage UI | 500V |
| Lpk | 20KA |
| Le | 125A |
| Dielectric test voltage at ind. Freq. for 1min | 2.5KV |
| Pollution degree | 2 |
| Cover material | PC |
| Base material | PA6 |
| Terminal | Brass |
| Glow wire test(IEC 695-2-1) ℃ | 960 |
