· Material： made from UL nylon 66.
· Usage：releasable

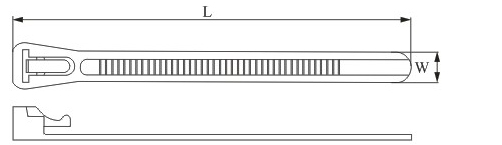

Loose nylon cable tie (Flexible type)
| Order No. | Length | Width(mm) | Binding range(mm) | Pull | ||
| INCH | MM | LBS | KGS | |||
| CHS-150RT | 6" | 150 | 7.5 | 35 | 50 | 22 |
| CHS-200RT | 8" | 200 | 7.5 | 45 | 50 | 22 |
| CHS-250RT | 10" | 250 | 7.5 | 60 | 50 | 22 |
| CHS-300RT | 12" | 300 | 7.5 | 75 | 50 | 22 |
| CHS-505RT | 19 11/16" | 500 | 8.5 | 145 | 75 | 34 |

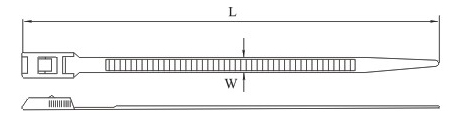

Loose nylon cable tie (Anti wear type)
| Order No. | Length | Width(mm) | Binding range(mm) | Pull | ||
| INCH | MM | LBS | KGS | |||
| CHS-350RT | 135/8″ | 350 | 8.0 | 45 | 50 | 22 |
| CHS-400RT | 15 3/4" | 400 | 8.0 | 105 | 50 | 22 |
| CHS-450RT | 17 3/4″ | 450 | 8.0 | 130 | 50 | 22 |
| CHS-500RT | 1911/16″ | 500 | 9.0 | 150 | 65 | 30 |

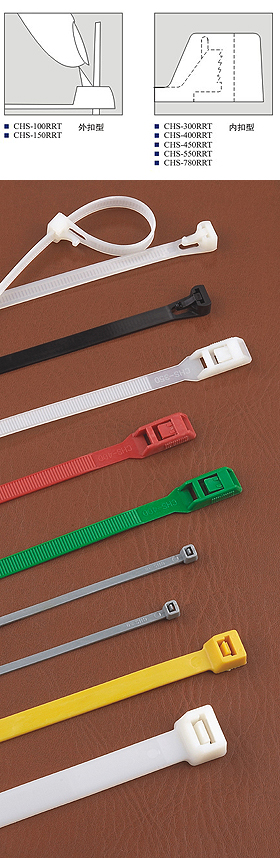

Loose nylon cable tie (external buckle type)
| Order No. | Length | Width(mm) | Binding range(mm) | Pull | ||
| INCH | MM | LBS | KGS | |||
| CHS-100RRT | 4" | 100 | 2.5 | 22 | 18 | 8 |
| CHS-150RRT | 6" | 150 | 3.5 | 35 | 40 | 18 |
Loose nylon cable tie (internal buckle type)
| Order No. | Length | Width(mm) | Binding range(mm) | Pull | ||
| INCH | MM | LBS | KGS | |||
| CHS-300RRT | 11 5/8″ | 300 | 12.7 | 82 | 250 | 114 |
| CHS-400RRT | 15 3/4" | 400 | 12.7 | 105 | 250 | 114 |
| CHS-450RRT | 17 3/4" | 450 | 9.0 | 118 | 175 | 80 |
| CHS-550RRT | 21 3/4″ | 550 | 9.0 | 160 | 175 | 80 |
| CHS-780RRT | 3011/16″ | 780 | 12.7 | 230 | 250 | 114 |
