· Material: Nylon 66, 94V-2, agreed by UL. Acid and corrode resisting, insulate, not apt to age.
· Usage: insert tie to the hole of table and tighten it.
· Usage: insert tie to the hole of table and tighten it.

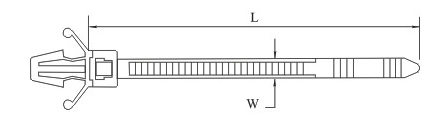

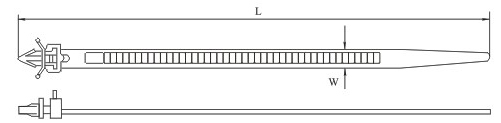

| Order No. | Length | width | Binding range(mm) | Pull | Aperture | Thickness of board | ||||
| INCH | MM | LBS | KGS | INCH | MM | INCH | MM | |||
| CHS-150PT | 6" | 150 | 8.0 | 37 | 40 | 18 | 0.252 | 6.4 | 0.126 | 3.2 |
| CHS-175PT | 65/6″ | 175 | 8.0 | 44 | 40 | 18 | 0.252 | 6.4 | 0.126 | 3.2 |
| Order No. | Length | width | Binding range(mm) | Pull | Aperture | Thickness of board | ||||
| INCH | MM | LBS | KGS | INCH | MM | INCH | MM | |||
| CHS-165PT | 61/2″ | 165 | 8.0 | 38 | 40 | 18 | 0.394 | 10.0 | 0.126 | 3.2 |
| Order No. | Length | width | Binding range(mm) | Pull | Aperture | Thickness of board | ||||
| INCH | MM | LBS | KGS | INCH | MM | INCH | MM | |||
| CHS-100PT | 4″ | 100 | 2.5 | 22 | 18 | 8.0 | 0.189 | 4.8 | 0.094 | 2.4 |
| CHS-120PT | 43/4″ | 120 | 3.2 | 25 | 30 | 13.6 | 0.157 | 4.0 | 0.079 | 2.0 |
| CHS-120PPT | 43/4″ | 120 | 4.8 | 25 | 50 | 22.0 | 0.252 | 6.4 | 0.126 | 3.2 |
| CHS-160PT | 61/4″ | 160 | 4.8 | 38 | 50 | 22.0 | 0.252 | 6.4 | 0.126 | 3.2 |
| CHS-190PT | 71/2″ | 190 | 4.8 | 45 | 50 | 22.0 | 0.252 | 6.4 | 0.126 | 3.2 |
