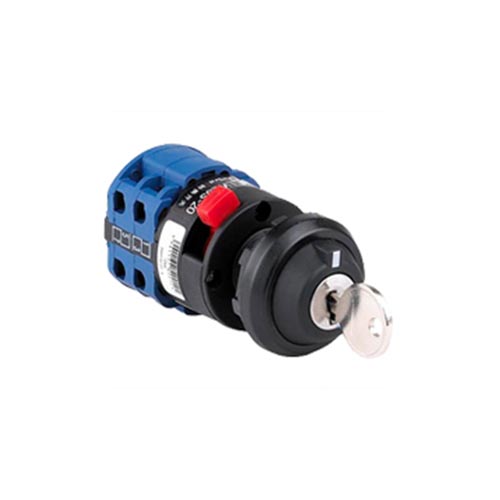

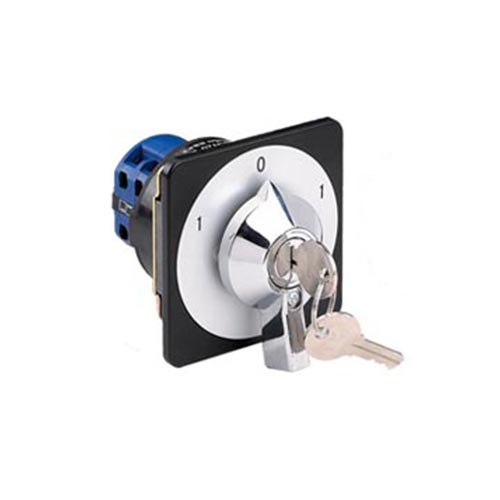

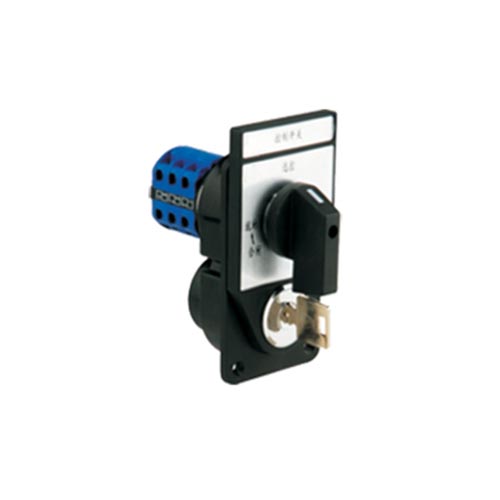

LW26S series of built-in type power cut-off switch, is derived from the product of LW26 series universal switch. Lock type power switch is mainly used as a tool for locking the power cut off switch, in the off position (i.e. "0") can self lock can prevent the illegal operation.
The product conforms to the national standard GB 14049.3, the international standard 60947-3 IEC.
The product conforms to the national standard GB 14049.3, the international standard 60947-3 IEC.
|
Type
|
LW26S-10
|
LW26S-20
|
LW26S-25
|
LW26S-32
|
LW26S-63
|
|
|
Rated insulation voltage Ue
|
V
|
440
|
440
|
440
|
440
|
440
|
|
Rated heating current Ith
|
A
|
10
|
20
|
25
|
32
|
63
|
|
Rated operating current Le
|
|
|
|
|
|
|
|
AC-21A
|
A
|
10
|
20
|
25
|
32
|
63
|
|
AC-22A
|
A
|
10
|
20
|
25
|
32
|
63
|
|
AC-23A
|
A
|
7
|
12
|
25
|
30
|
57
|
|
Rated control power
|
P
|
|
|
|
|
|
|
AC-23A
|
KW
|
3
|
7.5
|
11
|
15
|
30
|

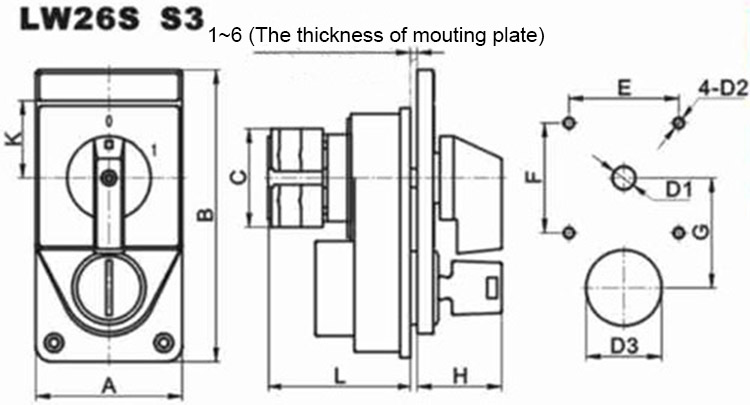

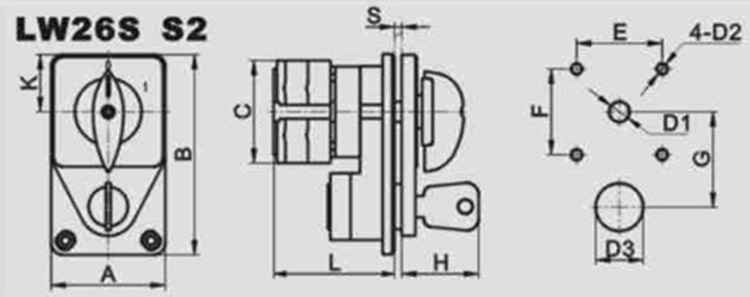

| Type | Product dimensions | Mounting dimensions | |||||
| A | C | H | L | E | F | G | |
|
LW26S-10
|
□30 | 28 | 8.5 |
71.5
|
Φ16.2 | 18 |
1.9
|
|
LW26S-20
|
□48 | 43 | 15.6 |
76.5
|
Φ22.3 | 24.1 |
3.2
|
|
LW26S-20
|
□64 | 43 | 15.6 |
76.5
|
Φ22.3 | 24.1 |
3.2
|
|
LW26S-20
|
□64 | 43 | 15.6 |
76.5
|
Φ30.5 | 33 |
4.8
|
|
LW26S-25
|
□48 | 45.2 | 15.6 |
83
|
Φ22.3 | 24.1 |
3.2
|
|
LW26S-25
|
□64 | 45.2 | 15.6 |
83
|
Φ22.3 | 24.1 |
3.2
|
|
LW26S-25
|
□64 | 45.2 | 15.6 |
83
|
Φ30.5 | 33 |
4.8
|
|
LW26S-32F
|
□48 | 48 | 15.6 |
86.5
|
Φ22.3 | 24.1 |
3.2
|
|
LW26S-32F
|
□64 | 48 | 15.6 |
86.5
|
Φ22.3 | 24.1 |
3.2
|
|
LW26S-32F
|
□64 | 48 | 15.6 |
86.5
|
Φ30.5 | 33 |
4.8
|
| Type | Product dimensions | Mounting dimensions | |||||
| A | C | H | L | E | F | G | |
|
LW26S-10
|
φ29 | 28 | 8.5 |
71.5
|
Φ16.2 | 18 |
1.9
|
|
LW26S-20
|
φ39 | 43 | 15.6 |
76.5
|
Φ22.3 | 24.1 |
3.2
|
|
LW26S-20
|
φ39 | 43 | 15.6 |
76.5
|
Φ22.3 | 24.1 |
3.2
|
|
LW26S-20
|
φ39 | 43 | 15.6 |
76.5
|
Φ30.5 | 33 |
4.8
|
|
LW26S-25
|
φ39 | 45.2 | 15.6 |
83
|
Φ22.3 | 24.1 |
3.2
|
|
LW26S-25
|
φ39 | 45.2 | 15.6 |
83
|
Φ22.3 | 24.1 |
3.2
|
|
LW26S-25
|
φ39 | 45.2 | 15.6 |
83
|
Φ30.5 | 33 |
4.8
|
|
LW26S-32F
|
φ39 | 48 | 15.6 |
86.5
|
Φ22.3 | 24.1 |
3.2
|
|
LW26S-32F
|
φ39 | 48 | 15.6 |
86.5
|
Φ22.3 | 24.1 |
3.2
|
|
LW26S-32F
|
φ39 | 48 | 15.6 |
86.5
|
Φ30.5 | 33 |
4.8
|
| Type | Product dimensions | Mounting dimensions | |||||||||||
| A | B | K | C | L | H | S | E | F | G | D1 | D2 | D3 | |
|
LW26S-20
|
A48 | 84 | 24 | 43 | 51.5 | 32.5 |
1～4
|
36 | 36 | 40 | Φ8.5 | Φ4.5 |
Φ20
|
|
LW26S-25
|
48 | 84 | 24 | 45.2 | 58 | 32.5 |
1～4
|
36 | 36 | 40 | Φ8.5 | Φ4.5 |
Φ20
|
|
LW26S-32
|
64 | 112 | 32 | 58 | 72 | 34 |
1～6
|
48 | 48 | 48 | Φ10 | Φ4.5 |
Φ34
|
|
LW26S-32F
|
48 | 84 | 24 | 48 | 61.5 | 32.5 |
1～4
|
36 | 36 | 40 | Φ8.5 | Φ4.5 |
Φ20
|
|
LW26S-63
|
64 | 112 | 32 | 66 | 79 | 34 |
1～6
|
48 | 48 | 48 | Φ10 | Φ4.5 |
Φ34
|
| Type | Product dimensions | Mounting dimensions | ||||||||||
| A | B | K | C | L | H | E | F | G | D1 | D2 | D3 | |
|
LW26S-20
|
64 | 126.5 | 32 | 43 | 51.5 |
34
|
48 | 48 | 48 | Φ10 | Φ4.5 |
Φ34
|
|
LW26S-25
|
64 | 126.5 | 32 | 45.2 | 58 |
34
|
48 | 48 | 48 | Φ10 | Φ4.5 |
Φ34
|
|
LW26S-32
|
64 | 126.5 | 32 | 58 | 72 |
34
|
48 | 48 | 48 | Φ10 | Φ4.5 |
Φ34
|
|
LW26S-32F
|
64 | 126.5 | 32 | 48 | 61.5 |
34
|
48 | 48 | 48 | Φ10 | Φ4.5 |
Φ34
|
|
LW26S-63
|
64 | 126.5 | 32 | 66 | 79 |
34
|
48 | 48 | 48 | Φ10 | Φ4.5 |
Φ34
|
