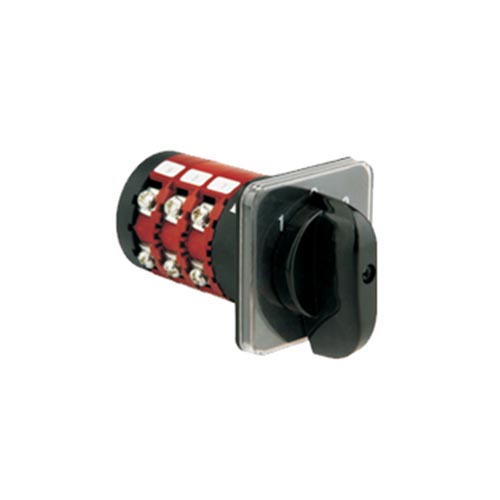

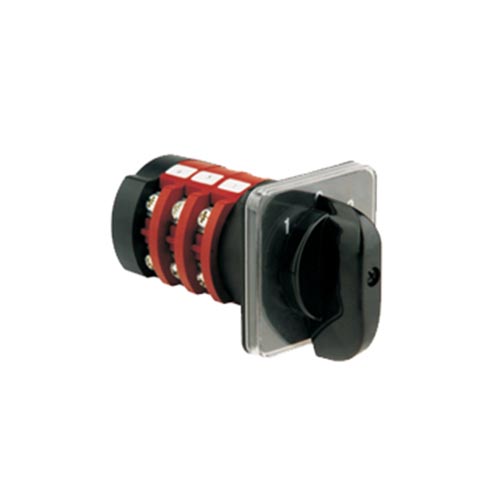

LW31B is mainly used for electric switch cabinet or three-phase asynchronous motor load starting speed change and as the main circuit and auxiliary circuit conversion, can be fully replaced by other conversion switch.
| Type | LW31B-16 | ||
| Rated heating current Ith | A | 16 | |
| Rated operating voltage Ue | V | 380~440 | 220~240 |
| Rated operating current Le | |||
| AC-21A | A | 16 | |
| AC-22A | A | 16 | |
| AC-15 | A | 3 | |
| DC-13 | A | 0.8 | |
| Rated control power P | z | ||
| AC-23A | KW | 5.5 | 3 |
| AC-2 | KW | 5.5 | 3 |
| AC-3 | KW | 4 | 2.2 |
| AC-4 | KW | 1 | 0.5 |
Mechanical life and electrical life
Mechanical life: 0.3 * 106, operating frequency is 120 times / hour.
Electrical life: 0.6 x 104 times, the operating frequency of 120 times / hour.
| Type | Product dimensions | Mounting dimensions | ||||||||||
| A | C | H | L | E | D1 | D2 | S | F | G | D3 | T | |
LW31B-16 |
□52 | Φ46.5 | 30max | 27+12n |
28 | Φ10 | Φ4 | 1.5 | 38 | Φ47 | Φ4.5 | 6 |
