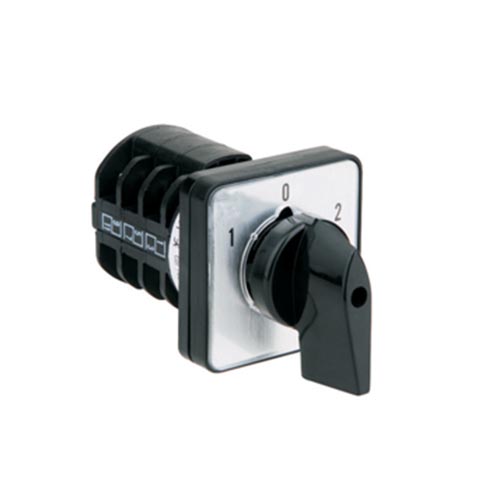

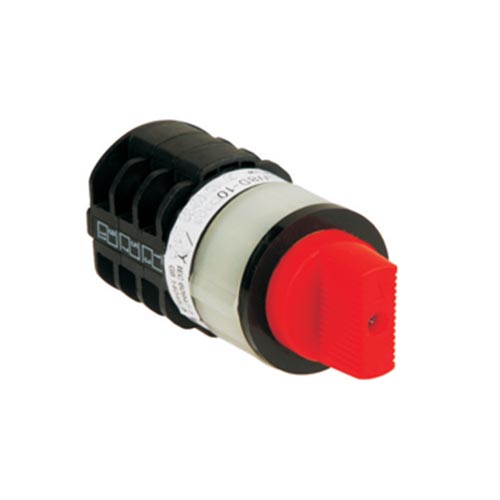

LW8D series universal conversion switch is suitable for the circuit conversion of electrical control circuit and electrical measurement is the instrument, but also can directly control the motor.
| Type | LW8D-10 | LW8D-20 | |||||
| Rated heating current Ith | A | 10 | 20 | ||||
| Rated operating voltage Ue | V | 240 | 250 | 380 | 240 | 250 | 380 |
| Rated operating current Le | |||||||
| AC-15 | A | 1.6 | 0.95 | 4.6 | 2.6 | ||
| DC-3 | A | 5 | 12 | ||||
| DC-13 | A | 0.14 | 0.27 | ||||
Mechanical life: 0.3 * 106, operating frequency is 120 times / hour.
Electrical life: AC-15 is 0.1 * 106 times, operation frequency is 300 times / hour.
DC-13 for 0.1 * 106 times, the operating frequency of 300 times / hour.
