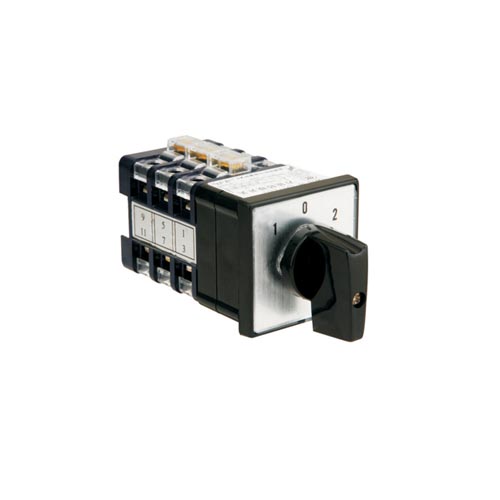

LW15 series universal conversion switch is suitable for the circuit to convert electrical control circuit, but also can be used for direct control of the motor.
| Descrption | LW15-16 | |||
| Rated thermal current Ith | A | 16 | ||
| Rated operating voltage Ue | V | 240 | 250 | 380 |
| Rated operating current Le | ||||
| AC-15 | A | 6 | 6 | |
| DC-13 | A | 0.27 | ||
| AC-3 | A | 12 | ||
| AC-4 | A | 10 | ||
| Power P | ||||
| AC-3 | KW | 5.5 | ||
| AC-4 | KW | 4.5 | ||
Mechanical life: 0.3 * 106, operating frequency is 120 times / hour.
Electrical life: AC-15 is 0.1 * 106 times, operation frequency is 300 times / hour.
DC-13 for 0.1 * 106 times, the operating frequency of 300 times / hour.
AC-3 for 0.1 * 106 times, the operating frequency of 120 times / hour.
AC-4 for 0.1 * 106 times, the operating frequency of 120 times / hour.
