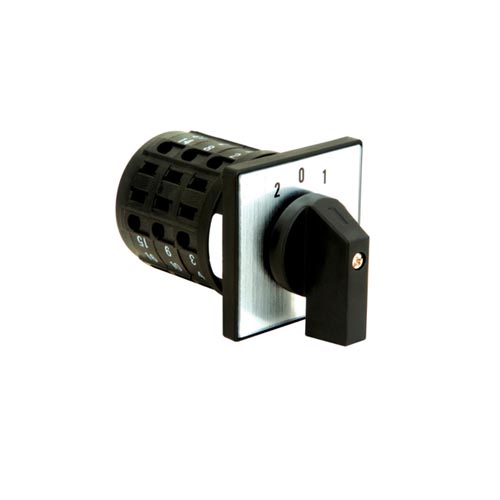

LW26D applied to control of machine,for change over of circuits,as well
as other circuits where a change over of circuits are required.
The LW26D has finger prove prove terminals,which provides extra protections.
The LW26D has finger prove prove terminals,which provides extra protections.
| Descrption | LW26D | ||
| Rated thermal current Ith | A | 10 | |
| Rated operating voltage Ue | V | 240 | |
| Rated operating current Le | |||
| AC-15 | A | 2.5 | 1.5 |
| DC-13 | A | 0.27 | |
Mechanical life without load:0.3×106times,operation frequency is 120 times/h.
Mechanical life with load:AC-15 for 0.1×106times, operation frequency is 300 times/h.
DC-13 for 0.1×106times, operation frequency is 300 times/h.
