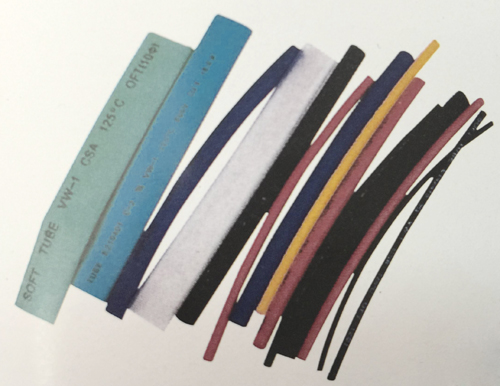

Heat shrinkable tubing material is a hand new high-tech product. It owns excellent physical and chemical character, rotten-resistance, insulation, cooling, hindering burning function. It provides a high-tech insulation protection material for electric and communication engineering. It fits for insulation of wire cable, cable terminal and joint. It protects and marks for electrical appliance line-shape componen, maintains insulation of terminal and joint, binding conducting wire in soft string.
FEATURES
High soft nature, low contract temperate and high hinder burning character.

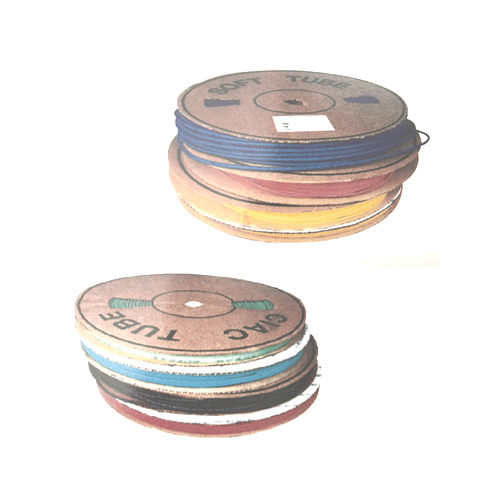

Specification is all in readiness: from 1mm to 50mm.
Shrink completely when reaches 90℃ temperate rang: -30℃ to 125℃.
It's installed by spray gun and oven.
Standard colors: black, white, red, yellow, blue and green. (Other specifications and colors can be ordered and be made acconding to your need.
Function level: Tesing level UL224.
| Tpye | Max Inner Dia (mm) | Min Inner Dia (mm) | Unit packing (m) |
| LH010 | 1.0 | 0.5 | 400 |
| LH015 | 1.5 | 0.75 | 300 |
| LH020 | 2.0 | 1.0 | 200 |
| LH025 | 2.5 | 1.25 | 200 |
| LH030 | 3.0 | 1.5 | 200 |
| LH035 | 3.5 | 1.75 | 200 |
| LH040 | 4.0 | 2.0 | 200 |
| LH050 | 5.0 | 2.5 | 100 |
| LH060 | 6.0 | 3.0 | 100 |
| LH070 | 7.0 | 3.5 | 100 |
| LH080 | 8.0 | 4.0 | 100 |
| LH090 | 9.0 | 4.5 | 100 |
| LH100 | 10.0 | 5.0 | 100 |
| LH110 | 11.0 | 5.5 | 100 |
| LH120 | 12.0 | 6.0 | 100 |
| LH130 | 13.0 | 6.5 | 100 |
| LH140 | 14.0 | 7.0 | 100 |
| LH150 | 15.0 | 7.5 | 100 |
| LH160 | 16.0 | 8.0 | 100 |
| LH170 | 17.0 | 8.5 | 100 |
| LH180 | 18.0 | 9.0 | 25 |
| LH200 | 20.0 | 10.0 | 25 |
| LH220 | 22.0 | 11.0 | 25 |
| LH250 | 25.0 | 12.5 | 25 |
| LH280 | 28.0 | 14.0 | 25 |
| LH300 | 30.0 | 15.0 | 25 |
| LH350 | 35.0 | 17.5 | 25 |
| LH400 | 40.0 | 20.0 | 25 |
| LH500 | 50.0 | 25.0 | 25 |
| LH600 | 60.0 | 30.0 | 25 |
| LH700 | 70.0 | 35.0 | 25 |
| LH800 | 80.0 | 40.0 | 25 |
| LH900 | 90.0 | 45.0 | 25 |
