Apply to the construction distribution system, cable connection , low voltage aerial insulating cable connection , low voltage indoor cable connection , street lamp distribution system etc.
Main line: insulated Cur or Alu . Tap line: insulated Cu or Alu.
Insulating body is made of high strength, Climatic and mechanically resistant material.
Tight bolt is processed by corrosion resistance treated and equipped with tight torque nut so that it can be installed simply , safely and fast . The stable piercing pressure can assure the cable connection up to a perfect effection.
Watertight connector: withstanding 6kV flash over in water.
Sealed waterproof cap of tap line can prevent water come into tap connection conductor . Qaterproof soft cap is for option . It can be seperated on right side or left side when it is necessary.
| Type | Applicable conductor range | Bolts QTY. | |
| Main lime section | Branch line section | ||

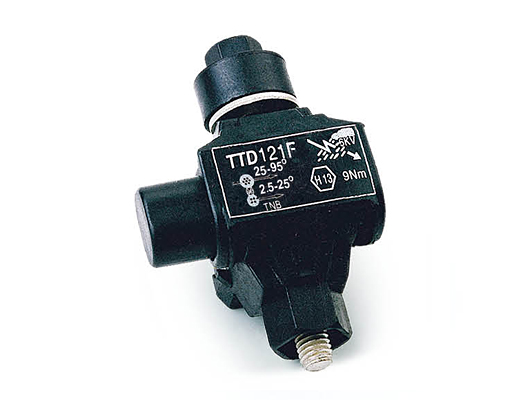

| TTD-121F | 25-95mm² | 2.5-25mm² | 1 |
| TTD-151F | 25-95mm² | 2.5(6-35)mm² | 1 |
| TTD-201F | 35-95mm² | 25-95mm² | 1 |
| TTD-281F | 50-185mm² | 2.5(6-35)mm² | 1 |
| TTD-301F | 25-95mm² | 25-95mm² | 2 |
| TTD-451F | 185-70mm² | 185-70mm² | 2 |
| TT2D82F | 21-95mm² | 2*(2.5-35)mm² | 1 |
