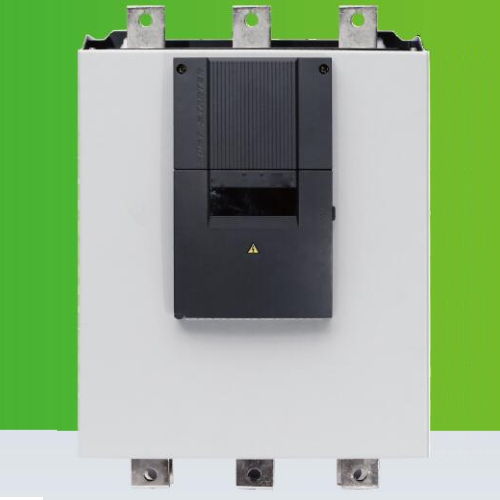

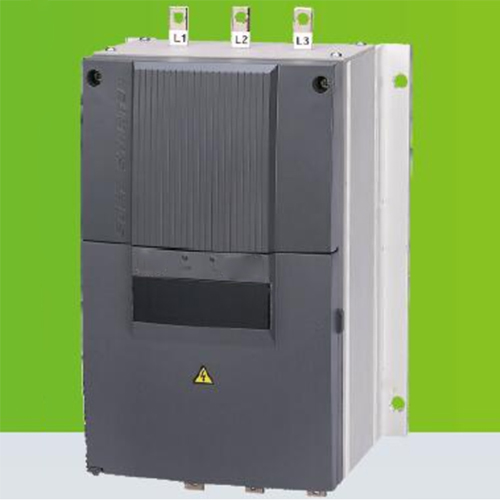

HPISS economical soft starter adopts dual MCU design, use new microprocessor technology to achieve communication, failure processing, signals acquisition, parameter setting etc. The built-in non-volatile memory is used to ensure parameters won't be lost. With perfect protect function, the entire protection and monitoring can be offered for shortcirecuit, over voltage,under voltage and over load.
The HPISS soft starter can achieve the full realization of intelligent systems through online update and high flexibility and human-machine interaction design. The model offers communication function which includes communication between field bus and soft starter, analogue output (optional), online software update.
Feature
• Opening design of human-machine interaction.
• Unique motor fuzzy algorithm solves mechanical impact and shock problems.
• Extensive motor protect functions, long lifespan.
• Opening programming, customization based upon customer's demand, save cost.
• Load data indication and feedback system.
Applications
• Starting equipment • Conveyor belt
• Packing Machinery • Woodworking Machinery
• Pump fan • Textile Machinery
• Extruder • Propeller
• Centrifuge • Process control
• Mixer • Main power plant
• Gear-drive device
|
|
