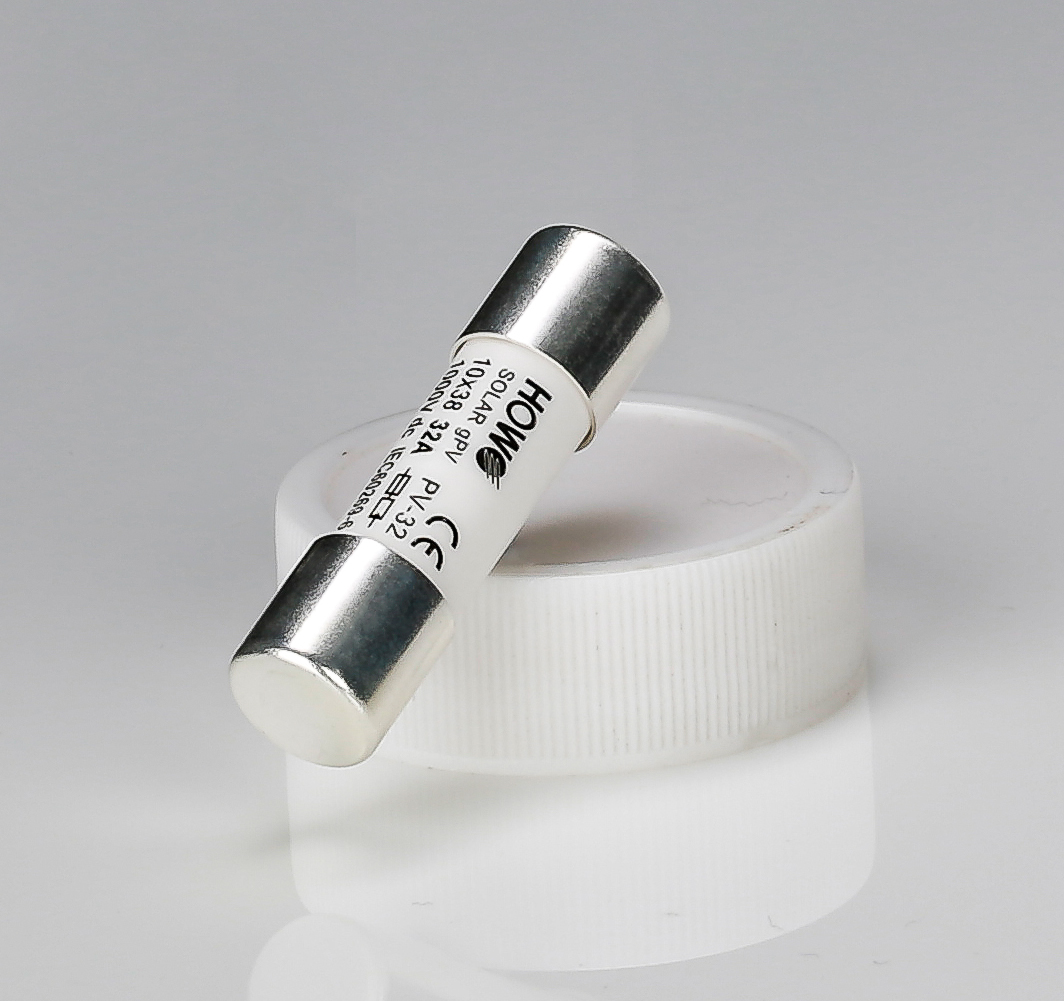

Fuse Size: 10x38mm
Class of Operation: gPV
Standard: GB/T 13539.6 IEC60269-6 UL2579
Breaking Capacity: 20kA
Time Constant: 1-3ms
Rated Current: 1A-32A
Rated Voltage: 1000V DC

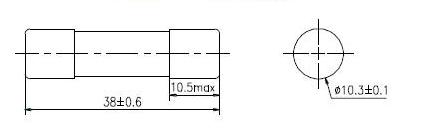

Dimensions:
|
Product number |
Current Rating |
Pre-arcing |
Total clear |
0.8ln | 1.01ln |
| PV-32 | 1 | 0.15 | 0.4 | 0.70 | 1.30 |
| PV-32 | 2 | 1.2 | 3.3 | 0.68 | 1.36 |
| PV-32 | 3 | 3.9 | 11 | 0.75 | 1.42 |
| PV-32 | 4 | 10 | 27 | 0.94 | 1.58 |
| PV-32 | 5 | 18 | 48 | 0.98 | 1.83 |
| PV-32 | 6 | 31 | 89 | 1.10 | 1.84 |
| PV-32 | 8 | 3.1 | 31 | 1.13 | 1.86 |
| PV-32 | 10 | 7.2 | 68 | 1.21 | 2.08 |
| PV-32 | 12 | 16 | 136 | 1.38 | 2.62 |
| PV-32 | 15 | 24 | 215 | 1.67 | 2.95 |
| PV-32 | 20 | 38 | 392 | 1.92 | 3.12 |
| PV-32 | 25 | 71 | 508 | 2.10 | 3.46 |
| PV-32 | 30 | 102 | 821 | 2.30 | 3.78 |
