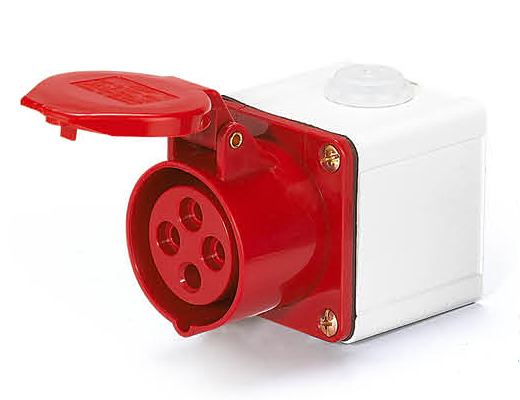

电流 Current(A): 16A, 32A
电压 Votage(V): 380-415V~
防护等级 Protection degree: IP44
电压 Votage(V): 380-415V~
防护等级 Protection degree: IP44
|
Earth contact position |
6h
|
|
|
Rated current (A) |
16
|
32
|
|
Pole |
4
|
|

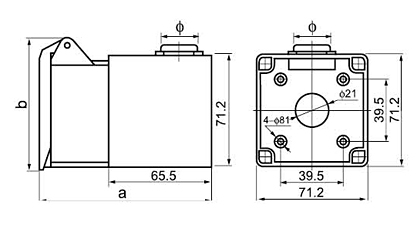

| Dimension (mm) | a | 107 | 113 |
| b | 95 | 104 | |
| Φ | 3-18 | 3-18 |
|
Cable nominal cross-section area (mm²) |
1-2.5 | 2.5-6 |
