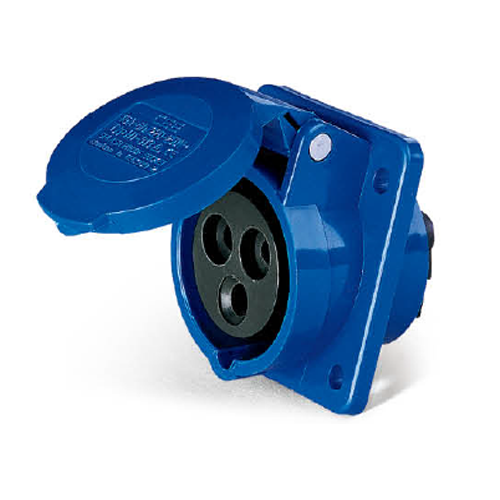

电流 Current(A): 16A, 32A
电压 Votage(V): 220-240V~
防护等级 Protection degree: IP44
电压 Votage(V): 220-240V~
防护等级 Protection degree: IP44
|
Earth contact position |
6h
|
|
|
Rated current (A) |
16
|
32
|
|
Pole |
3
|
|

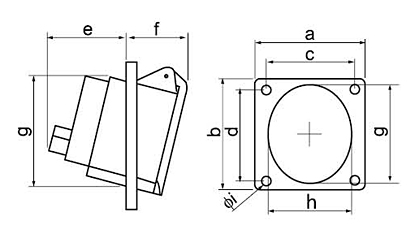

| Dimension (mm) | a | 62 | 80 |
| b | 68 | 96 | |
| c | 47 | 60 | |
| d | 48 | 70 | |
| e | 36 | 42 | |
| f | 37 | 43 | |
| g | 55 | 75 | |
| h | 50 | 66 | |
| i | 5 | 5 |
|
Cable nominal cross-section area (mm²) |
1-2.5 | 2.5-6 |
