电流 Current(A): 16A, 32A
电压 Votage(V): 380-415V~
防护等级 Protection degree: IP44
电压 Votage(V): 380-415V~
防护等级 Protection degree: IP44
|
Earth contact position |
6h
|
|
|
Rated current (A) |
16
|
32
|
|
Pole |
4
|
|

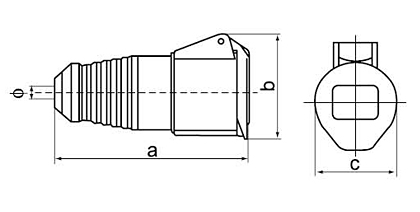

| Dimension (mm) | a | 131 | 152 |
| b | 79 | 94 | |
| c | 56 | 65 | |
| Φ | 6-16 | 8-20 |
|
Cable nominal cross-section area (mm²) |
1-2.5 | 2.5-6 |
