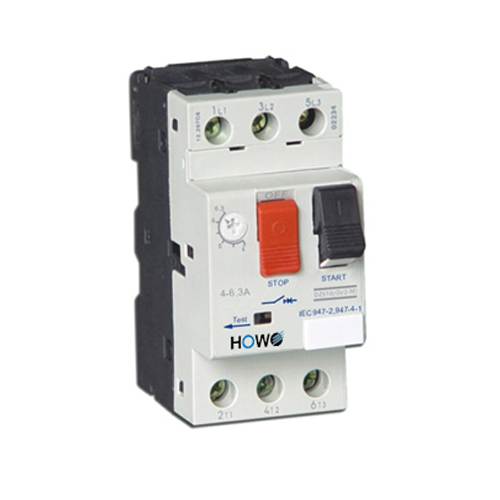

DZ518(GV2) series motor protecting breaker adopts the design of module.It has beautiful shape,small value,complete range of function and reliable performance.DZ518 series is conformity with IEC60947.2, IEC60947-4.1, and EN60947-1 standards.The switch and contactor can make up the starting of the motor.The prection grade of the case of DZ518 series can reach IP65. DZ518 series has three types of products.DZ518 (GV2-M) series is button-controlling motor with hot magnetic protecting breaker.
Table 1
|
DZ518(GV2-M)
|
|
| M01C | 0.1-0.16 |
| M02C | 0.16-0.25 |
| M03C | 0.25-0.40 |
| M04C | 0.40-0.63 |
| M05C | 0.63-1 |
| M06C | 1-1.6 |
| M07C | 1.6-2.5 |
| M08C | 2.5-4 |
| M10C | 4-6.3 |
| M14C | 6-10 |
| M16C | 6-14 |
| M18C | 10-16 |
| M20C | 13-18 |
| M21C | 17-23 |
| M22C | 20-25 |
| M32C | 24-32 |
Table 2
|
The adjusting range of |
The standard power of three-phase electromotor (KW) AC-3, 50/60Hz | |||||
| 230/240V | 400V | 415V | 440V | 500V | 690V | |
| 0.1-0.16 | - | - | - | - | - | - |
| 0.16-0.25 | - | - | - | - | - | - |
| 0.25-0.4 | - | - | - | - | - | - |
| 0.4-0.63 | - | - | - | - | - | 0.37 |
| 0.63-1 | - | - | - | 0.37 | 0.37 | 0.55 |
| 1-1.6 | - | 0.37 | - | 0.55 | 0.75 | 1.1 |
| 1.6-2.5 | 0.37 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 |
| 2.5-4 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 |
| 4-6.3 | 1.1 | 2.2 | 2.2 | 3 | 3.7 | 4 |
| 6-10 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 |
| 9-14 | 3 | 5.5 | 5.5 | 7.5 | 7.5 | 9 |
| 13-18 | 4 | 7.5 | 9 | 9 | 9 | 11 |
| 17-23 | 5.5 | 11 | 11 | 11 | 11 | 15 |
| 20-25 | 5.5 | 11 | 11 | 11 | 15 |
18.5 |
| 24-32 | 7.5 | 15 | 15 | 15 | 18.5 | 23 |
Table 3
|
The rated current |
The adjusting range commuting current for coponents A | The disjointing current commuting value in instant field InA |
| 0.16 | 0.1-0.16 | 1.5 |
| 0.25 | 0.16-0.25 | 2.4 |
| 0.4 | 0.25-0.4 | 5 |
| 0.63 | 0.4-0.63 | 8 |
| 1 | 0.63-1 | 13 |
| 1.6 | 1-1.6 | 22.5 |
| 2.5 | 1.6-2.5 | 33.5 |
| 4 | 2.5-4 | 51 |
| 6.3 | 4-6.3 | 78 |
| 10 | 6-10 | 138 |
| 14 | 9-14 | 170 |
| 18 | 13-18 | 223 |
| 23 | 17-23 | 327 |
| 25 | 20-25 | 327 |
| 32 | 24-32 | 416 |
