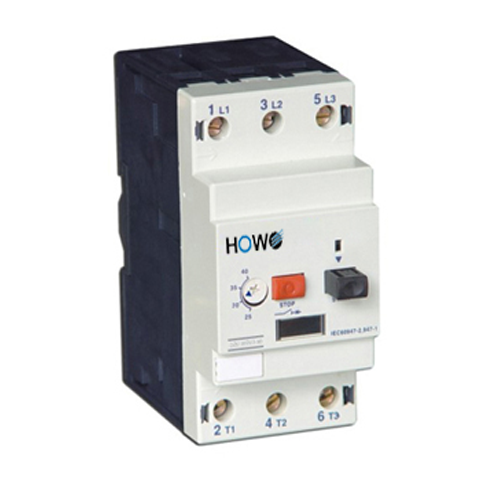

DZ518 (GV3) Molded case circuit breaker is suitable for electric circuit with AC voltage to 690V, current 1 to 80A. As the full-voltage starter to start and cut off the motor,under the AC3 load or for the overload and short circuit protection of the circuit and power equipment in the power distribution network.

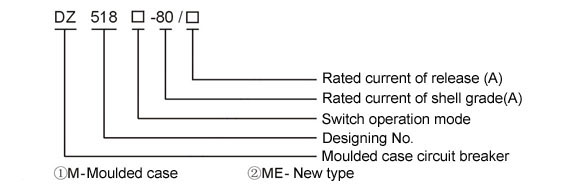

DZ518-M
(GV3-M)
(GV3-ME)
DZ518-M10
6-10A
6-10A
DZ518-M16
10-16A
10-16A
DZ518-M20
14-20A
14-20A
DZ518-M25
16-25A
16-25A
DZ518-M40
25-40A
25-40A
DZ518-M63
40-63A
40-63A
DZ518-M80
56-80A
56-80A
|
Type |
The adjusting range commuting current for coponents A | The standard power of three-phase electromotor (KW) AC-3, 50/60Hz |
| Amps | KW | |
| DZ518-M40 | 25-40 | 18.5 |
| DZ518-M63 | 40-63 | 30 |
| DZ518-M80 | 56-80 | 40 |
