| Item | Rated voltage | Rated breaking capacity | Standard specification | Class |
| Contact-cap Fuse-link | 500V AC | 100kA |
IEC60269-2-1 EN60269-2-1 NFC63-210 UNE21.103 |
gG-gL |
| Item | In(A) |
Fuse Link Order No. |
With Indicator Order No. |
With Striker Order No. |
Packing |

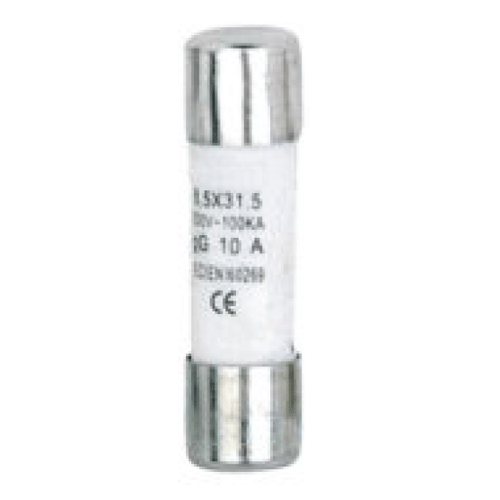

| 8.5×31.5 Fuse Link | |||||
|
8.5×31.5 gG-gL |
2 | 1110002 | 1111002 | 1112002 | 10/2000 |
| 4 | 1110004 | 1111004 | 1112004 | ||
| 6 | 1110006 | 1111006 | 1112006 | ||
| 10 | 1110010 | 1111010 | 1112010 | ||
| 16 | 1110016 | 1111016 | 1112016 | ||
| 20 | 1110020 | 1111020 | 1112020 | ||

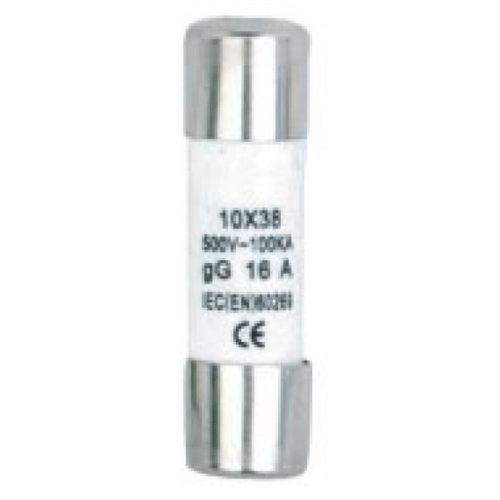

| 10×38 Fuse Link | |||||
|
10×38 gG-gL |
2 | 1120002 | 1121002 | 1122002 | 10/2000 |
| 4 | 1120004 | 1121004 | 1122004 | ||
| 6 | 1120006 | 1121006 | 1122006 | ||
| 10 | 1120010 | 1121010 | 1122010 | ||
| 16 | 1120016 | 1121016 | 1122016 | ||
| 20 | 1120020 | 1121020 | 1122020 | ||
| 25 | 1120025 | 1121025 | 1122025 | ||
| 32 | 1120032 | 1121032 | 1122032 | ||

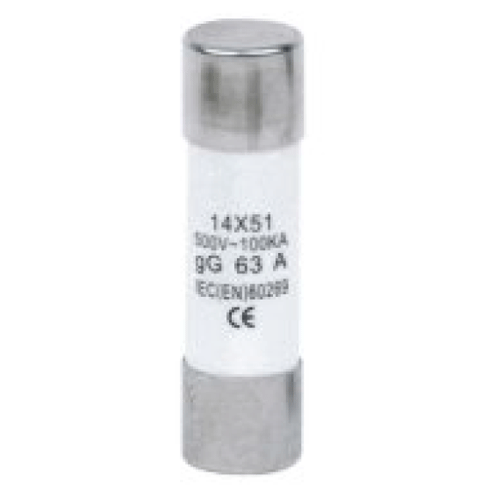

| 14×51 Fuse Link | |||||
|
14×51 gG-gL |
2 | 1130002 | 1131002 | 1132002 | 10/500 |
| 4 | 1130004 | 1131004 | 1132004 | ||
| 6 | 1130006 | 1131006 | 1132006 | ||
| 10 | 1130010 | 1131010 | 1132010 | ||
| 16 | 1130016 | 1131016 | 1132016 | ||
| 20 | 1130020 | 1131020 | 1132020 | ||
| 25 | 1130025 | 1131025 | 1132025 | ||
| 32 | 1130032 | 1131032 | 1132032 | ||
| 40 | 1130040 | 1131040 | 1132040 | ||
| 50 | 1130050 | 1131050 | 1132050 | ||
| 63 | 1130063 | 1131063 | 1132063 | ||

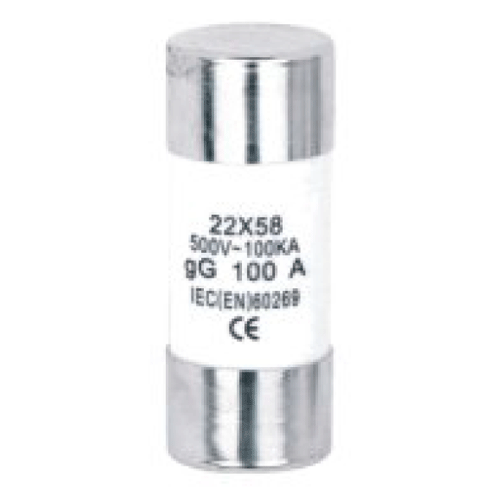

| 22×58 Fuse Link | |||||
|
22×58 gG-gL |
2 | 1140002 | 1141002 | 1142002 | 5/300 |
| 4 | 1140004 | 1141004 | 1142004 | ||
| 6 | 1140006 | 1141006 | 1142006 | ||
| 10 | 1140010 | 1141010 | 1142010 | ||
| 16 | 1140016 | 1141016 | 1142016 | ||
| 20 | 1140020 | 1141020 | 1142020 | ||
| 25 | 1140025 | 1141025 | 1142025 | ||
| 32 | 1140032 | 1141032 | 1142032 | ||
| 40 | 1140040 | 1141040 | 1142040 | ||
| 50 | 1140050 | 1141050 | 1142050 | ||
| 63 | 1140063 | 1141063 | 1142063 | ||
| 80 | 1140080 | 1141080 | 1142080 | ||
| 100 | 1140100 | 1141100 | 1142100 | ||
| 125 | 1140125 | 1141125 | 1142125 | ||
