| Item | Rated voltage | Rated breaking capacity | Standard specification | Class | Characteristic |
| Contact-cap Fuse-link | 500V AC | 80kA |
IEC60269-2-1 EN60269-2-1 |
aM/gM | Motor starting duty |
| Item | In(A) |
Fuse Link Order No. |
With Indicator Order No. |
With Striker Order No. |
Packing |

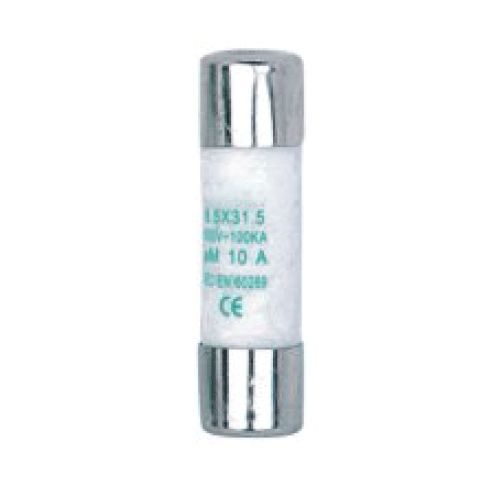

| 8.5×31.5 Fuse Link | |||||
|
8.5×31.5 aM |
2 | 1210002 | 1211002 | 1212002 | 10/2000 |
| 4 | 1210004 | 1211004 | 1212004 | ||
| 6 | 1210006 | 1211006 | 1212006 | ||
| 10 | 1210010 | 1211010 | 1212010 | ||
| 16 | 1210016 | 1211016 | 1212016 | ||
| 20 | 1210020 | 1211020 | 1212020 | ||

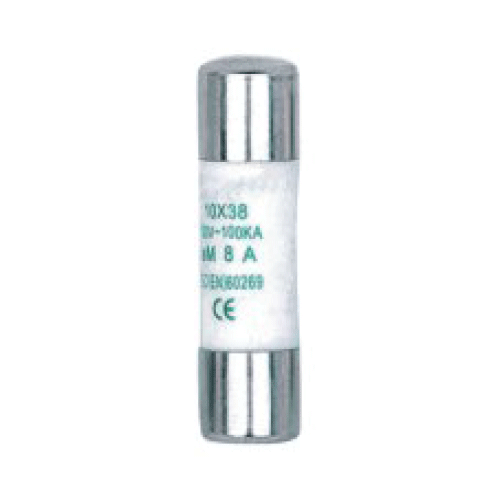

| 10×38 Fuse Link | |||||
|
10×38 aM |
2 | 1220002 | 1221002 | 1222002 | 10/2000 |
| 4 | 1220004 | 1221004 | 1222004 | ||
| 6 | 1220006 | 1221006 | 1222006 | ||
| 10 | 1220010 | 1221010 | 1222010 | ||
| 16 | 1220016 | 1221016 | 1222016 | ||
| 20 | 1220020 | 1221020 | 1222020 | ||
| 25 | 1220025 | 1221025 | 1222025 | ||
| 32 | 1220032 | 1221032 | 1222032 | ||

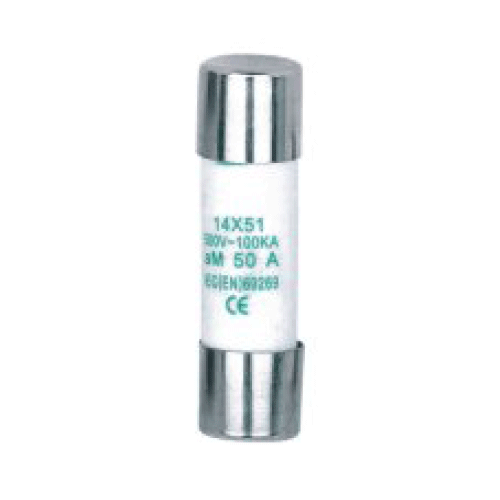

| 14×51 Fuse Link | |||||
|
14×51 aM |
2 | 1230002 | 1232002 | 1231002 | 10/500 |
| 4 | 1230004 | 1232004 | 1231004 | ||
| 6 | 1230006 | 1232006 | 1231006 | ||
| 10 | 1230010 | 1232010 | 1231010 | ||
| 16 | 1230016 | 1232016 | 1231016 | ||
| 20 | 1230020 | 1232020 | 1231020 | ||
| 25 | 1230025 | 1232025 | 1231025 | ||
| 32 | 1230032 | 1232032 | 1231032 | ||
| 40 | 1230040 | 1232040 | 1231040 | ||
| 50 | 1230050 | 1232050 | 1231050 | ||
| 63 | 1230063 | 1232063 | 1231063 | ||
| 22×58 Fuse Link | |||||
|
22×58 aM |
2 | 1240002 | 1242002 | 1241002 | 5/300 |
| 4 | 1240004 | 1242004 | 1241004 | ||
| 6 | 1240006 | 1242006 | 1241006 | ||
| 10 | 1240010 | 1242010 | 1241010 | ||
| 16 | 1240016 | 1242016 | 1241016 | ||
| 20 | 1240020 | 1242020 | 1241020 | ||
| 25 | 1240025 | 1242025 | 1241025 | ||
| 32 | 1240032 | 1242032 | 1241032 | ||
| 40 | 1240040 | 1242040 | 1241040 | ||
| 50 | 1240050 | 1242050 | 1241050 | ||
| 63 | 1240063 | 1242063 | 1241063 | ||
| 80 | 1240080 | 1242080 | 1241080 | ||
| 100 | 1240100 | 1242100 | 1241100 | ||
| 125 | 1240125 | 1242125 | 1241125 | ||
