| Item | Rated voltage | Rated current | Standard specifications |
| Fuse-Holder for Cylindrical Fuse-link | 690V AC | up to 125A |
IEC60269-2-1 EN60269-2-1 IEC63211 NFC63210-6321 |
| Item | Pole |

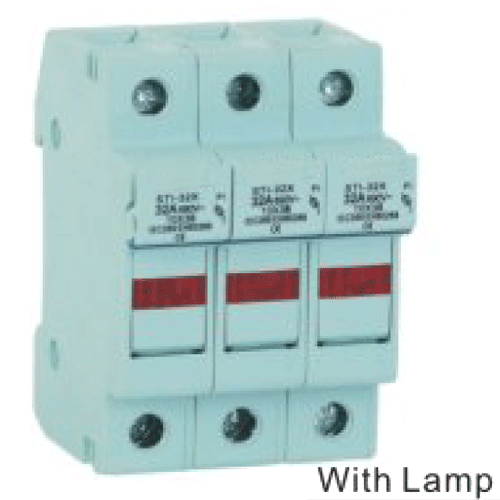

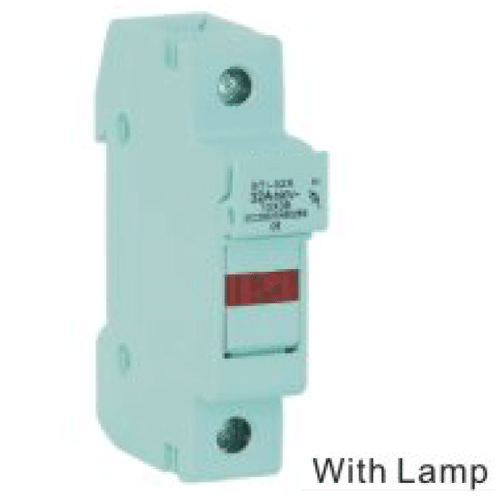

With Lamp Order No. |

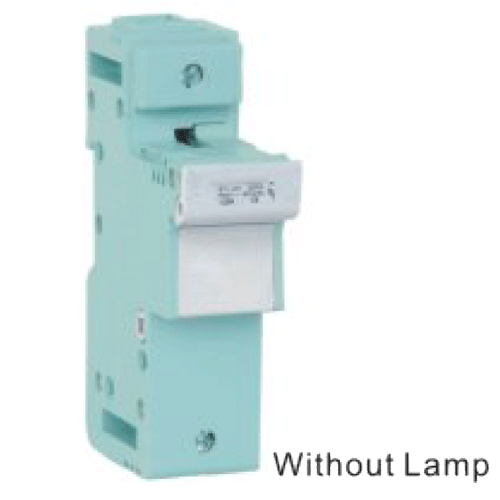

Without Lamp Order No. |
Packing |
| STID-20 | STI-20 | |||
|
20A for 8.5×31.5 |
1 | 1808101 | 1808001 | 12/240 |
| 1+N | 1808120 | 1808020 | 6/120 | |
| 2 | 1808121 | 1808021 | 6/120 | |
| 3 | 1808131 | 1808031 | 4/80 | |
| 3+N | 1808140 | 1808040 | 3/60 | |
| STID-32 | STI-32 | |||
|
32A for 10×38 |
1 | 1810101 | 1810001 | 12/240 |
| 1+N | 1810120 | 1810020 | 6/120 | |
| 2 | 1810121 | 1810021 | 6/120 | |
| 3 | 1810131 | 1810031 | 4/80 | |
| 3+N | 1810140 | 1810040 | 3/60 | |
| STID-63 | STI-63 | |||
|
63A for 14×51 |
1 | 1814101 | 1814001 | 6/108 |
| 1+N | 1814120 | 1814020 | 3/54 | |
| 2 | 1814121 | 1814021 | 3/54 | |
| 3 | 1814131 | 1814031 | 2/36 | |
| 3+N | 1814140 | 1814040 | 1/27 | |
| STID-125 | STI-125 | |||
|
125A for 22×58 |
1 | 1822101 | 1822001 | 6/108 |
| 1+N | 1822120 | 1822020 | 3/54 | |
| 2 | 1822121 | 1822021 | 3/54 | |
| 3 | 1822131 | 1822031 | 2/36 | |
| 3+N | 1822140 | 1822040 | 1/27 |
