Item | Rated voltage | Rated current | Standard specifications |

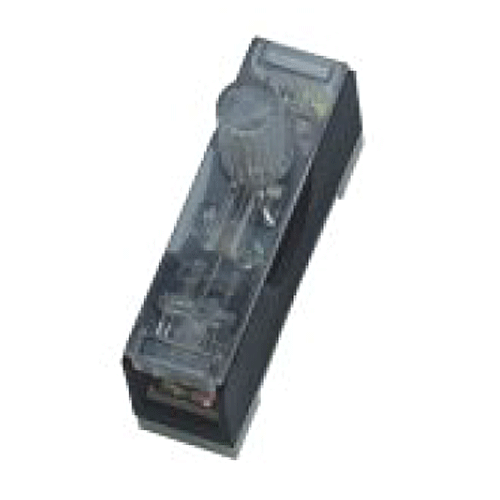

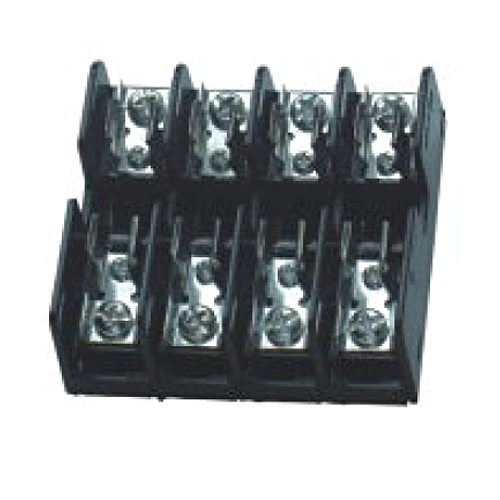

Fuse-base for Cylindrical Protection STB,STS,STC Type |
400V AC | up to 125A |
IEC60269-2-1 EN60269-2-1 |
Item | Pole |
Order No. |
Packing |
STB-20 Fuse-base | |||
for 8.5×31.5 |
1 | 1908001 | 10/300 |
STB-32 Fuse-base | |||
for 10×38 |
1 | 1910001 | 12/360 |
2 | 1910002 | 6/180 | |
3 | 1910003 | 4/120 | |
4 | 1910004 | 3/90 | |
STB-63 Fuse-base | |||
for 14×51 |
1 | 1920001 | 10/360 |
STB-125 Fuse-base | |||
for 22×58 |
1 | 1922001 | 10/360 |
STS-10 Fuse-base with Lamp | |||
for 6×32 |
1 | 1906101 | |
2 | 1906102 | ||
3 | 1906103 | ||
4 | 1906104 | ||
STS-20 Fuse-base with Lamp | |||
for 10×38 |
1 | 1910101 | |
2 | 1910102 | ||
3 | 1910103 | ||
4 | 1910104 | ||
STS-32 Fuse-base with Lamp | |||
for 14×51 |
1 | 1914101 | |
2 | 1914102 | ||
3 | 1914103 | ||
4 | 1914104 | ||

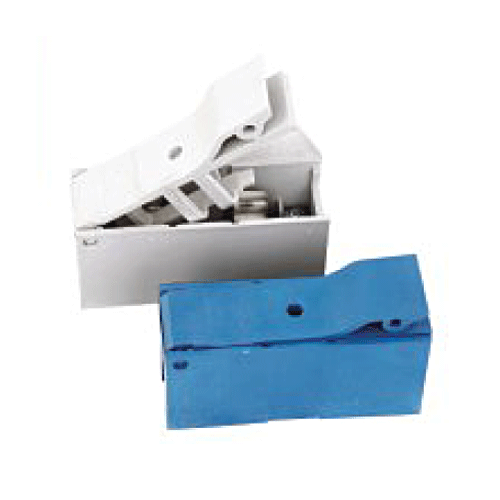

STC Fuse Holder for 14×51 or 22×58 | |||
STC-50 |
1 | 1501050 | |
STC-100 | 1 | 1502100 | |
STC-100N | 1 | 1503100 |
