| Item | Rated voltage | Rated breaking capacity | Standard specifications | Class |

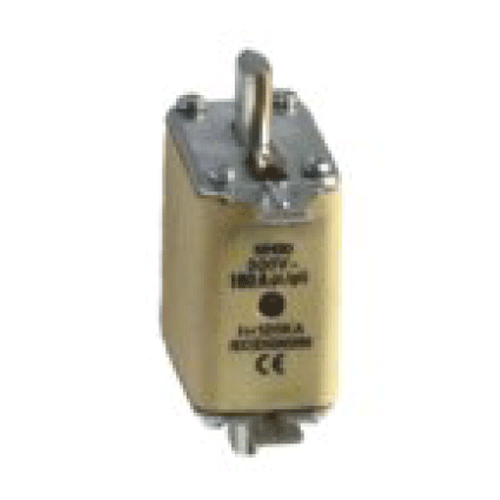

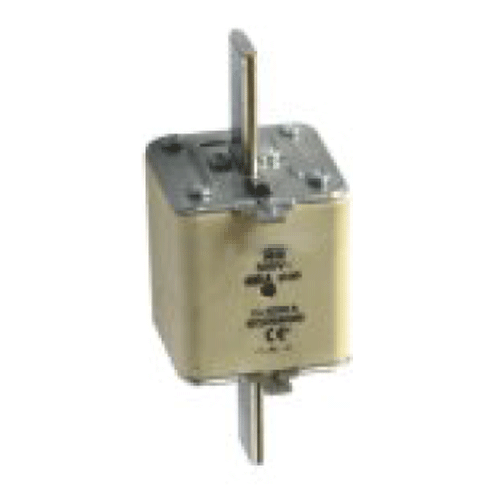

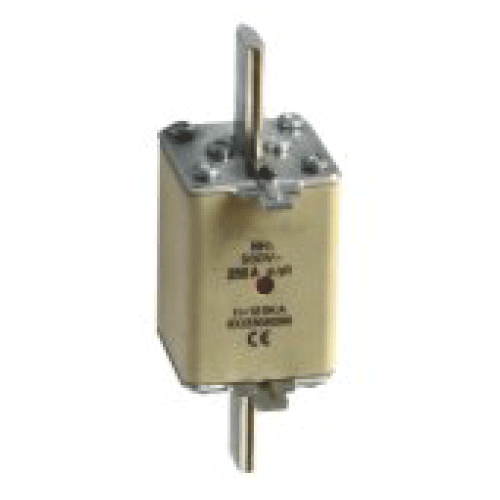

| LV HRC Knife-Contact Fuse-link Double Indicator | 500V AC | 120kA |
IEC60269-2-1 EN60269-2-1 |
gG-gL |
| Item | In(A) |
Order No. |
Packing |
|
NH00C |
10 | 2411010 | 3/120 |
| 16 | 2411016 | ||
| 20 | 2411020 | ||
| 25 | 2411025 | ||
| 32 | 2411032 | ||
| 40 | 2411040 | ||
| 50 | 2411050 | ||
| 63 | 2411063 | ||
| 80 | 2411080 | ||
| 100 | 2411100 | ||
|
NH00 |
6 | 2420006 | 3/120 |
| 10 | 2420010 | ||
| 16 | 2420016 | ||
| 20 | 2420020 | ||
| 25 | 2420025 | ||
| 32 | 2420032 | ||
| 40 | 2420040 | ||
| 50 | 2420050 | ||
| 63 | 2420063 | ||
| 80 | 2420080 | ||
| 100 | 2420100 | ||
| 125 | 2420125 | ||
| 160 | 2420160 | ||
|
NH1 |
50 | 2440050 | 3/54 |
| 63 | 2440063 | ||
| 80 | 2440080 | ||
| 100 | 2440100 | ||
| 125 | 2440125 | ||
| 160 | 2440160 | ||
| 200 | 2440200 | ||
| 224 | 2440224 | ||
| 250 | 2440250 | ||
|
NH2 |
200 | 2450200 | 1/30 |
| 224 | 2450224 | ||
| 250 | 2450250 | ||
| 315 | 2450315 | ||
| 355 | 2450355 | ||
| 400 | 2450400 | ||
|
NH3 |
315 | 2460315 | 1/24 |
| 355 | 2460355 | ||
| 400 | 2460400 | ||
| 425 | 2460425 | ||
| 500 | 2460500 | ||
| 630 | 2460630 |
