| Item | Rated voltage | Rated breaking capacity | Standard specifications | Class |

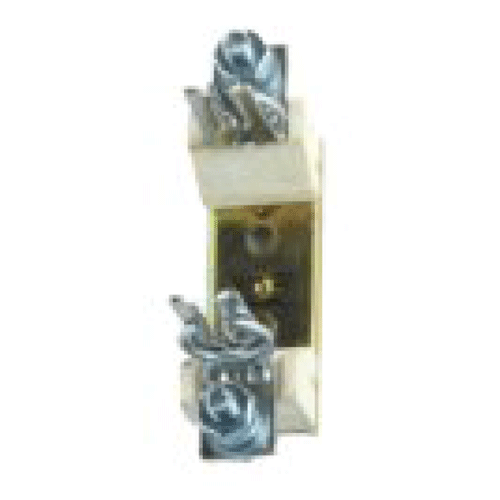

| LV HRC Knife-Contact Fuse-link | 500V/690V AC | 120kA |
IEC60269-2-1 EN60269-2-1 |
gG-gL |
| Item | In(A) |
Order No. |
Rated Power Acceptance |
Packing |
| Metal Base 1P | ||||
|
NH00 |
160 | 3100100 | 12W/690V | 5/120 |
| NH0 | 160 | 3100010 | 25W/690V | 3/60 |
| NH1 | 250 | 3100011 | 32W/690V | 3/36 |
| NH2 | 400 | 3100012 | 45W/690V | 1/20 |
| NH3 | 630 | 3100013 | 60W/690V | 1/20 |
| NH4 | 1250 | 3100014 | 110W/500V | 1/8 |
