| Item | Rated voltage | Rated breaking capacity | Standard specifications |

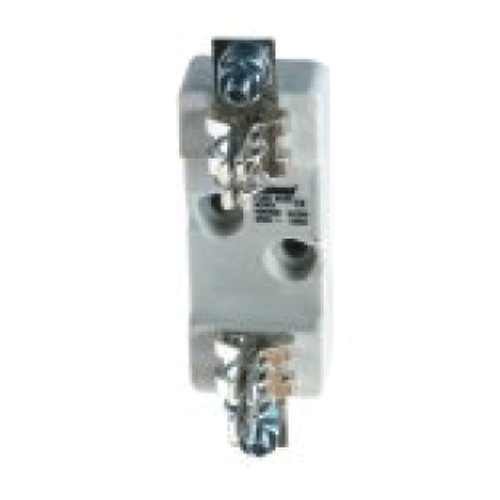

| LV HRC Fuse-base for NH/NT Fuse-link | 500V/690V AC | 120kA |
IEC60269-2-1 EN60269-2-1 |
| Item | In(A) |
Order No. |
Rated Power Acceptance | Packing |
| Fuse Base Risen(DMC) Type | ||||
|
NHA00 |
160 | 3200100 | 12W/690V | 5/120 |
| NHA0 | 160 | 3200010 | 25W/690V | 3/60 |
| NHA1 | 250 | 3200011 | 32W/690V | 3/36 |
| NHA2 | 400 | 3200012 | 45W/690V | 1/20 |
| NHA3 | 630 | 3200013 | 60W/690V | 1/20 |
| NHA4 | 1250 | 3200014 | 110W/500V | 1/8 |
| NHA00/3 | 3×630 | 3203101 | 3×12W/690V | 1/40 |

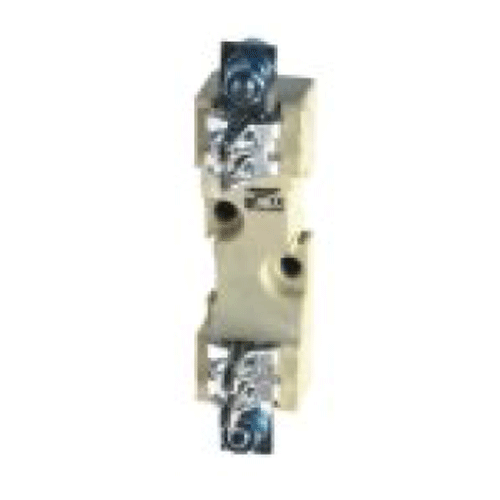

| Fuse Base Porcelain Type | ||||
|
NHB00 |
160 |
|
12W/690V | 5/120 |
| NHB0 | 160 |
|
25W/690V | 1/60 |
| NHB1 | 250 |
|
32W/690V | 1/36 |
| NHB2 | 400 |
|
45W/690V | 1/20 |
| NHB3 | 630 |
|
60W/690V | 1/20 |

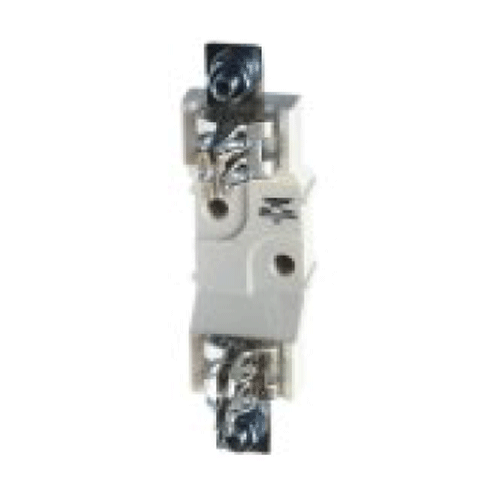

| Fuse Base Steatite Type | ||||
|
NHS00 |
160 |
|
12W/690V | 5/120 |
| NHS1 | 250 |
|
32W/690V | 1/36 |
| NHS2 | 400 |
|
45W/690V | 1/20 |
| NHS3 | 630 |
|
60W/690V | 1/20 |
