Contact specificationTechincal specificationCoil dataCoil specificationOutline diemensionMounting holes (Bottom view)Wiring diagram (Bottom view)

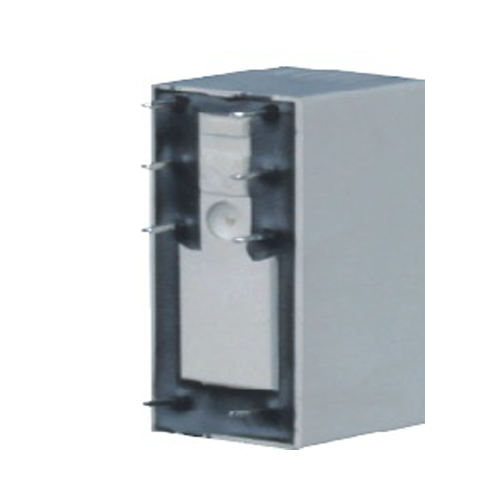

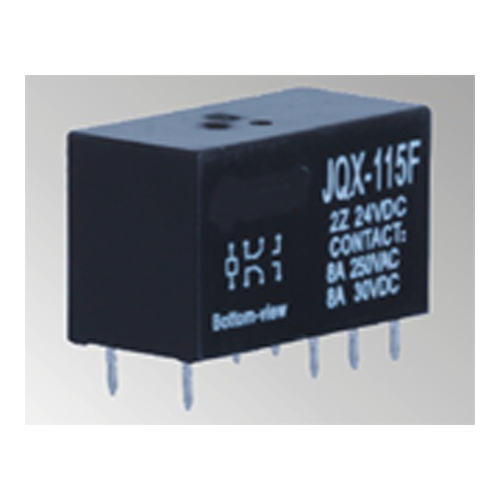

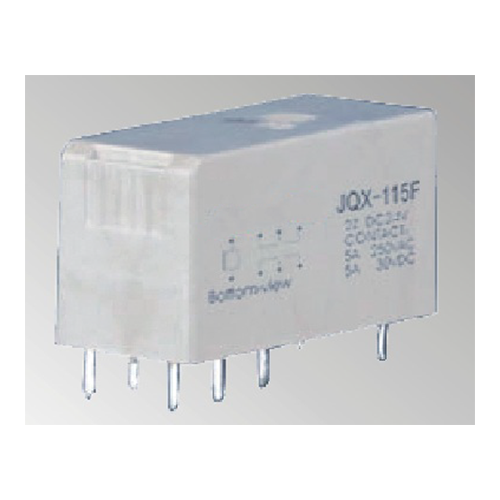

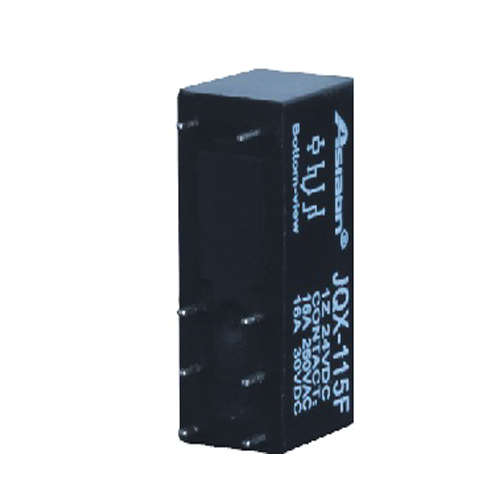

| Howo code | JQX-115F |
| Contact form | 1Z/1H/1D 2Z/2H/2D |
| Contact resistance | ≤100mΩ（1A 6VDC) |
| Contact material | AgCdO AgSnO2 |
| Contact capacity | 16A 250VAC/30VDC |
| 8A 250VAC/30VDC | |
| Howo code | JQX-115F |
| Insulation resistance | ≥1000MΩ（500DC） |
| Dielectric strength | Between coil and contact≥5000VAC 1min |
| Between open contact≥1000VAC 1min | |
| Between contacts of different poles≥2500AC 1min | |
| Operate/Release time | ≤15ms/15ms |
| terminal type | PCB mounting |
|
Norminal voltage
|
Operate voltage
|
Release voltage
|
Coil resistance
|
|
VDC
|
VDC
|
VDC
|
Ω±10%
|
|
5
|
3.75
|
0.5
|
55
|
|
6
|
4.5
|
0.6
|
68
|
|
12
|
9
|
1.2
|
270
|
|
24
|
18
|
2.4
|
1087
|
|
48
|
36.4
|
4.8
|
4347
|
|
60
|
48
|
6
|
7500
|
|
110
|
82.5
|
11
|
27170
|
| Howo code | JQX-115F |
| Rated coil power | 0.53W |
