| Item | Rated voltage | Rated breaking capacity | Standard specifications | Dimensions | Class |
|

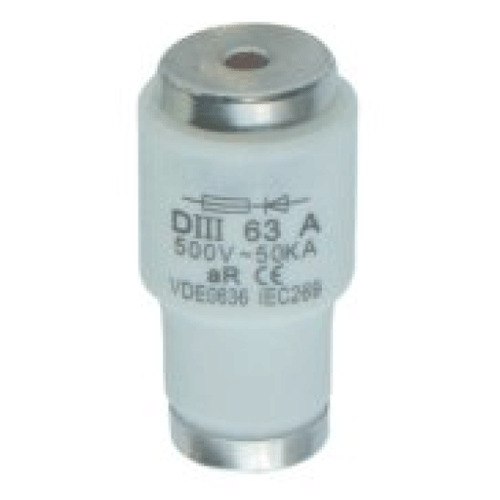

SILZD Fuse-link Quick-response, D type |
500V AC | 50kA |
IEC60269-4-1 EN60269-4-1 |
DIN49515 | aR/gR |
| Item | In(A) |
Order No. |
Packing |
| DII Fuse Link | |||
|
DII aR |
2 | 5321002 | 5/500 |
| 4 | 5321004 | ||
| 6 | 5321006 | ||
| 10 | 5321010 | ||
| 16 | 5321016 | ||
| 20 | 5321020 | ||
| 25 | 5321025 | ||
| 30 | 5321030 | ||
| DIII Fuse Link | |||
|
DIII aR |
35 | 5331035 | 5/500 |
| 40 | 5331040 | ||
| 50 | 5331050 | ||
| 63 | 5331063 | ||
| DIV Fuse Link | |||
|
DIV aR |
80 | 5341080 | 5/240 |
| 100 | 5341100 | ||
| DV Fuse Link | |||
|
DV aR |
125 | 5351125 | 5/100 |
| 160 | 5351160 | ||
| 200 | 5351200 | ||
