Contact specificationTechincal specificationCoil dataCoil specificationOutline diemensionMounting holes (Bottom view)Wiring diagram (Bottom view)

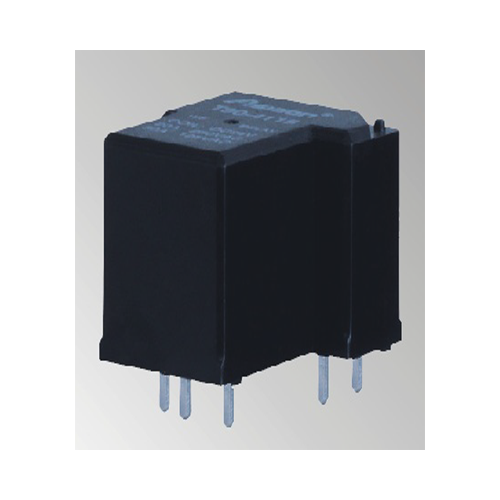

| Howo code | JQX-15F/T90 |

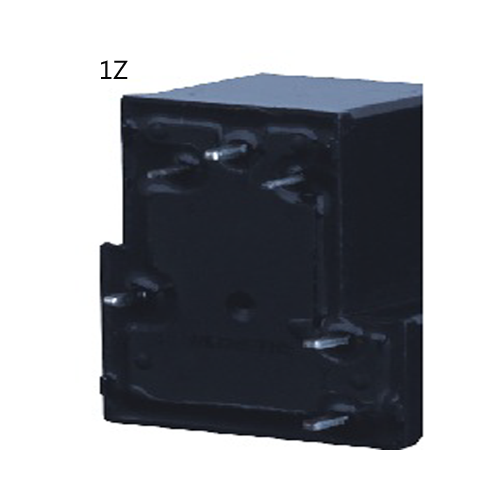

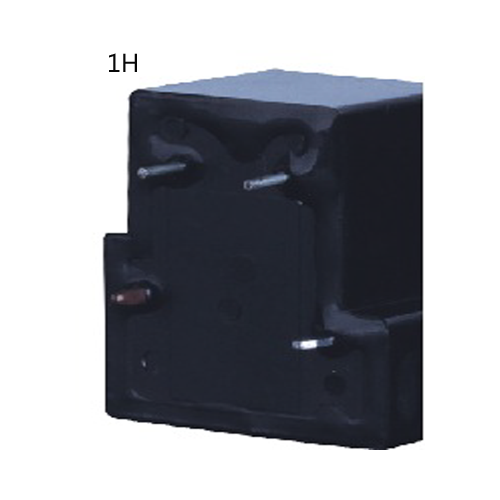

| Contact form | 1Z/1H/1D |
| Contact resistance | ≤100mΩ（1A 6VDC) |
| Contact material | AgCdO AgSnO2 |
| Contact capacity | NO:30A 240VAC/28VDC |
| NC:20A 240VAC/28VDC | |
| Howo code | JQX-15F/T90 |
| Insulation resistance | ≥1000MΩ（500DC） |
| Dielectric strength | Between coil and contact≥2500VAC 1min |
| Between open contact≥1500VAC 1min | |
| Operate/Release time | ≤15ms/10ms |
| terminal type | PCB mounting |
|
Norminal
|
Operate voltage
|
Release voltage
|
Coil resistance
|
|
VDC
|
VDC
|
VDC
|
Ω±10%
|
|
5
|
3.75
|
0.5
|
30
|
|
6
|
4.5
|
0.6
|
45
|
|
9
|
6.75
|
0.9
|
100
|
|
12
|
9
|
1.2
|
160
|
|
15
|
11.25
|
1.5
|
260
|
|
18
|
13.5
|
1.8
|
385
|
|
24
|
18
|
2.4
|
660
|
|
48
|
36
|
4.8
|
2560
|
|
70
|
52.5
|
7
|
5500
|
|
110
|
82.5
|
11
|
13450
|
| Howo code | JQX-15F/T90 |
| Rated coil power | DC0.9W |
