| Item | Rated voltage | Rated breaking capacity | Standard specifications | Class |
|
HRC Fuse-link |
550V AC | 80kA |
BS88-2 IEC60269-2-1 |
gG/Q1 |
| Item | In(A) |
Order No. |
Packing |

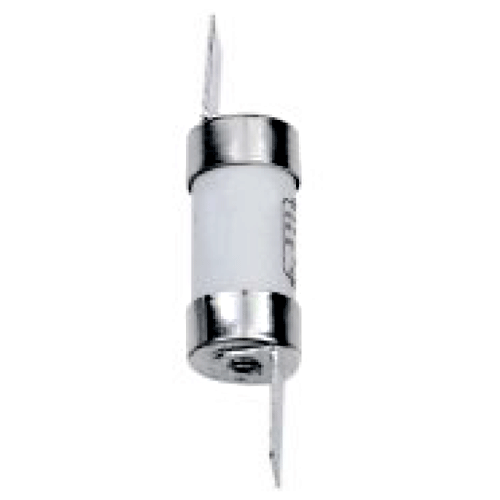

| NIT Fuse Link | |||
| NIT (A1) | 2 | 5800002 | 10/2000 |
| 4 | 5800004 | ||
| 6 | 5800006 | ||
| 10 | 5800010 | ||
| 16 | 5800016 | ||
| 20 | 5800020 | ||

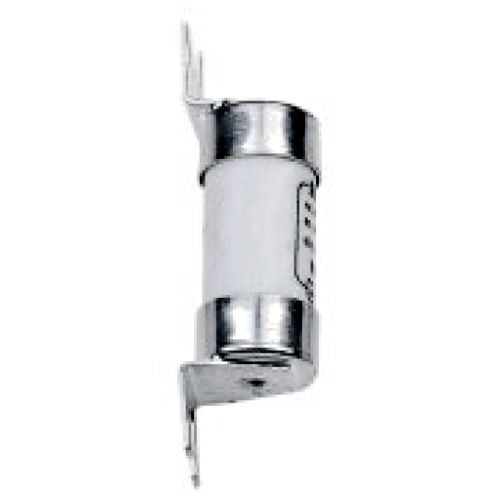

| TIA Fuse Link | |||
| TIA (A2) | 2 | 5801002 | 10/1000 |
| 4 | 5801004 | ||
| 6 | 5801006 | ||
| 10 | 5801010 | ||
| 16 | 5801016 | ||
| 20 | 5801020 | ||
| 25 | 5801025 | ||
| 32 | 5801032 | ||
| TIS Fuse Link | |||
| TIS (A2) | 32 | 5802032 | - |
| 40 | 5802040 | ||
| 50 | 5802050 | ||
| 63 | 5802063 | ||

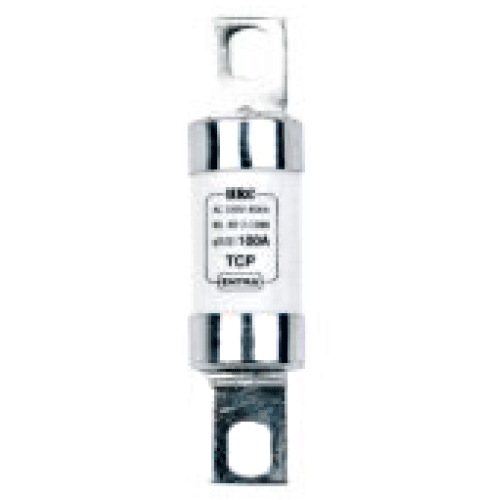

| TCP Fuse Link | |||
| TCP (A3) | 40 | 5803040 | 3/300 |
| 50 | 5803050 | ||
| 63 | 5803063 | ||
| 80 | 5803080 | ||
| 100 | 5803100 | ||
| TFP Fuse Link | |||
| TFP (A4) | 125 | 5804125 | - |
| 160 | 5804160 | ||
| 200 | 5804200 | ||
| NS Fuse Link | |||
| NS (F1) | 2 | 5830002 | 10/2000 |
| 4 | 5830004 | ||
| 6 | 5830006 | ||
| 10 | 5830010 | ||
| 16 | 5830016 | ||
| 20 | 5830020 | ||
| HRC Fuse Link with Central tags 2-hole fixing | |||
| TBC (B1) | 2 | 5805002 | - |
| 4 | 5805004 | ||
| 6 | 5805006 | ||
| 10 | 5805010 | ||
| 16 | 5805016 | ||
| 20 | 5805020 | ||
| 25 | 5805025 | ||
| 32 | 5805032 | ||
| 40 | 5805040 | ||
| 50 | 5805050 | ||
| 63 | 5805063 | ||
| TC (B1) | 80 | 5806080 | |
| 100 | 5806100 | ||

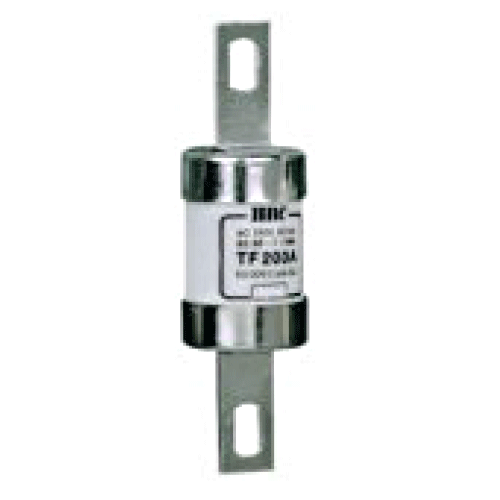

| TF (B2) | 125 | 5807125 | |
| 160 | 5807160 | ||
| 200 | 5807200 | ||
| TKF (B3) | 250 | 5808250 | |
| 315 | 5808315 | ||
| TMF (B4) | 355 | 5809355 | |
| 400 | 5809400 | ||

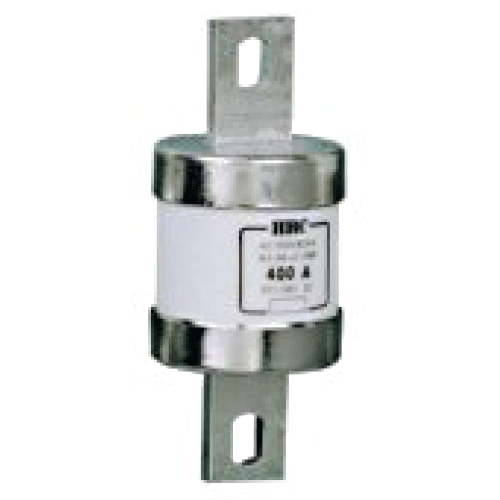

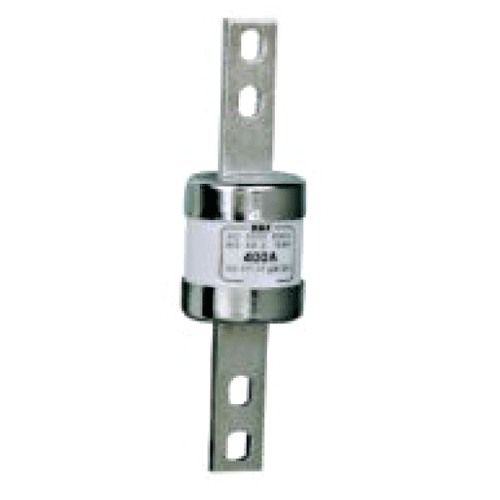

| HRC Fuse Link with Central tags 4-hole fixing | |||
| TM (C1) | 250 | 5810250 | - |
| 315 | 5810315 | ||
| 355 | 5810355 | ||
| 400 | 5810400 | ||
| TMT (C1) | 355 | 5811355 | |
| 400 | 5811400 | ||
| TTM (C2) | 450 | 5812450 | |
| 500 | 5812500 | ||
| 560 | 5812560 | ||
| 630 | 5812630 | ||
| TLM (C3) | 560 | 5813560 | |
| 630 | 5813630 | ||
| 670 | 5813670 | ||
| 750 | 5813750 | ||
| 800 | 5813800 | ||
| HRC Fuse Link with Central tags 4-hole fixing | |||
| TT (C2) | 450 | 5820450 | - |
| 500 | 5820500 | ||
| 560 | 5820560 | ||
| 630 | 5820630 | ||
| TLT (C3) | 670 | 5830670 | |
| 750 | 5830750 | ||
| 800 | 5830800 | ||
| TLU (D1) | 1000 | 5841000 | |
| 1250 | 5841250 | ||
