| Item | Rated voltage | Rated breaking capacity | Standard specifications | Class |
|

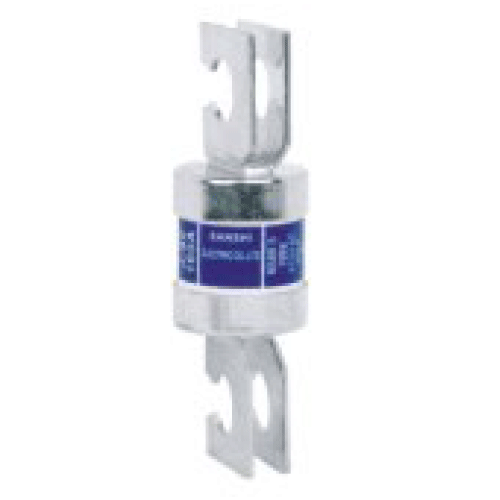

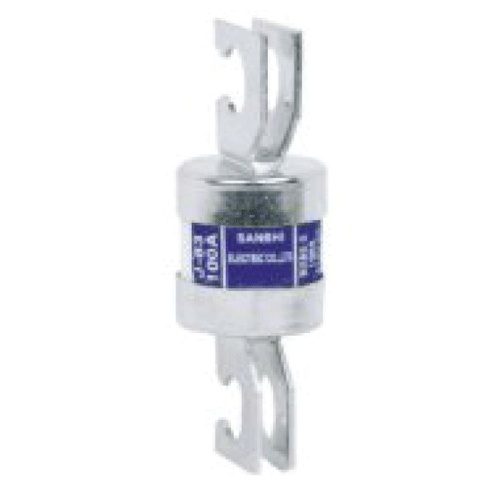

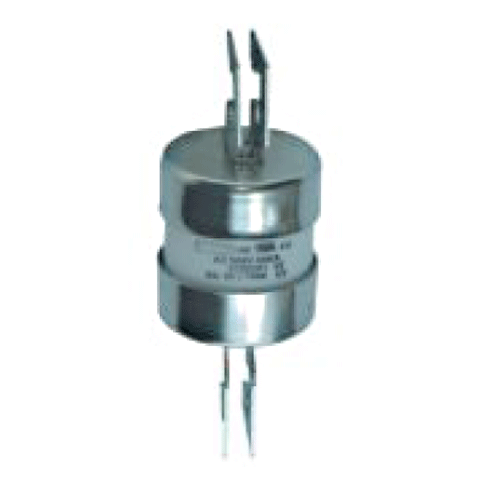

Induustrial protection HRC Fuse-link, J Type |
415V/550V AC | 80kA |
BS88-2 IEC60269-2-1 |
gG/Q1 |
| Item | In(A) |
Order No. |
| JHU Fuse Link | ||
| 76MM JHU | 20 | 5876020 |
| 25 | 5876025 | |
| 32 | 5876032 | |
| 40 | 5876040 | |
| 50 | 5876050 | |
| 63 | 5876063 | |
| 80 | 5876080 | |
| 100 | 5876100 | |
| 125 | 5876125 | |
| 160 | 5876160 | |
| 200 | 5876200 | |
| 250 | 5876250 | |
| 315 | 5876315 | |
| 355 | 5876355 | |
| 400 | 5876400 | |
| 450 | 5876450 | |
| 500 | 5876500 | |
| 560 | 5876560 | |
| 630 | 5876630 | |
| 800 | 5876800 | |
| JPU Fuse Link | ||
| 83MM JPU | 20 | 5883020 |
| 25 | 5883025 | |
| 32 | 5883032 | |
| 40 | 5883040 | |
| 50 | 5883050 | |
| 63 | 5883063 | |
| 80 | 5883080 | |
| 100 | 5883100 | |
| 125 | 5883125 | |
| 160 | 5883160 | |
| 200 | 5883200 | |
| 250 | 5883250 | |
| 315 | 5883315 | |
| 355 | 5883355 | |
| 400 | 5883400 | |
| 450 | 5883450 | |
| 500 | 5883500 | |
| 560 | 5883560 | |
| 630 | 5883630 | |
| 800 | 5883800 | |
| JSU Fuse Link | ||
| 92MM JSU | 20 | 5892020 |
| 25 | 5892025 | |
| 32 | 5892032 | |
| 40 | 5892040 | |
| 50 | 5892050 | |
| 63 | 5892063 | |
| 80 | 5892080 | |
| 100 | 5892100 | |
| 125 | 5892125 | |
| 160 | 5892160 | |
| 200 | 5892200 | |
| 250 | 5892250 | |
| 315 | 5892315 | |
| 355 | 5892355 | |
| 400 | 5892400 | |
| 450 | 5892450 | |
| 500 | 5892500 | |
| 560 | 5892560 | |
| 630 | 5892630 | |
| 800 | 5892800 | |
