| Item | Rated voltage | Rated breaking capacity | Standard specifications | Class |
|

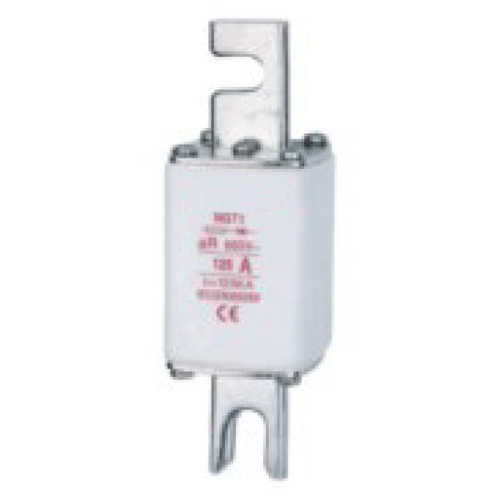

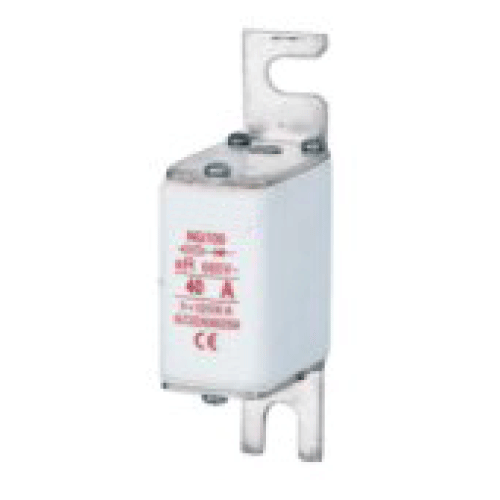

Fuse for the protection of Semiconductor device, NGTA Type |
up to 1000V AC | 100kA |
IEC60269-4-1 EN60269-4-1 |
aR |
| Item | In(A) |
With indicator Order No. |
With striker Order No. |
Packing |
| NGT Fuse-link A Model | ||||
| NGTA00 | 25 | 8110025 | 8111025 | 5/120 |
| 32 | 8110032 | 8111032 | ||
| 40 | 8110040 | 8111040 | ||
| 50 | 8110050 | 8111050 | ||
| 63 | 8110063 | 8111063 | ||
| 80 | 8110080 | 8111080 | ||
| 100 | 8110100 | 8111100 | ||
| 125 | 8110125 | 8111125 | ||
| NGTA1 | 100 | 8130100 | 8131100 | 3/54 |
| 125 | 8130125 | 8131125 | ||
| 160 | 8130160 | 8131160 | ||
| 200 | 8130200 | 8131200 | ||
| 250 | 8130250 | 8131250 | ||
| NGTA2 | 200 | 8140200 | 8141200 | 1/30 |
| 224 | 8140224 | 8141224 | ||
| 250 | 8140225? | 8141225 | ||
| 350 | 8140350 | 8141350 | ||
| 315 | 8140315 | 8141315 | ||
| 355 | 8140355 | 8141355 | ||
| 400 | 8140400 | 8141400 | ||
| NGTA3 | 355 | 8150355 | 8151355 | 1/24 |
| 400 | 8150400 | 8151400 | ||
| 425 | 8150425 | 8151425 | ||
| 500 | 8150500 | 8151500 | ||
| 560 | 8150560 | 8151560 | ||
| 630 | 8150630 | 8151630 | ||
