| Item | Rated voltage | Rated breaking capacity | Standard specifications | Class |
|

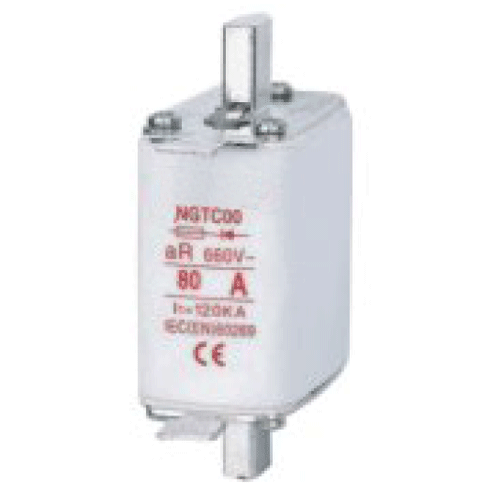

Fuse for the protection of Semiconductor device, NGTC Type |
up to 1000V AC | 100kA |
IEC60269-4-1 EN60269-4-1 |
aR |
| Item | In(A) |
With indicator Order No. |
With striker Order No. |
Packing |
| NGT Fuse-link C Model | ||||
| NGTC00 | 25 | 8210025 | 8211025 | 5/120 |
| 32 | 8210032 | 8211032 | ||
| 40 | 8210040 | 8211040 | ||
| 50 | 8210050 | 8211050 | ||
| 63 | 8210063 | 8211063 | ||
| 80 | 8210080 | 8211080 | ||
| 100 | 8210100 | 8211100 | ||
| 125 | 8210125 | 8211125 | ||
| NGTC1 | 100 | 8230100 | 8231100 | 3/54 |
| 125 | 8230125 | 8231125 | ||
| 160 | 8230160 | 8231160 | ||
| 200 | 8230200 | 8231200 | ||
| 250 | 8230250 | 8231250 | ||
| NGTC2 | 200 | 8240200 | 8241200 | 1/30 |
| 224 | 8240224 | 8241224 | ||
| 250 | 8240250 | 8241250 | ||
| 315 | 8240315 | 8241315 | ||
| 355 | 8240355 | 8241355 | ||
| 400 | 8240400 | 8241400 | ||
| NGTC3 | 355 | 8250355 | 8251355 | 1/24 |
| 400 | 8250400 | 8251400 | ||
| 425 | 8250425 | 8251425 | ||
| 500 | 8250500 | 8251500 | ||
| 560 | 8250560 | 8251560 | ||
| 630 | 8250630 | 8251630 | ||
