| Item | Rated voltage | Rated breaking capacity | Standard specifications | Class |
|

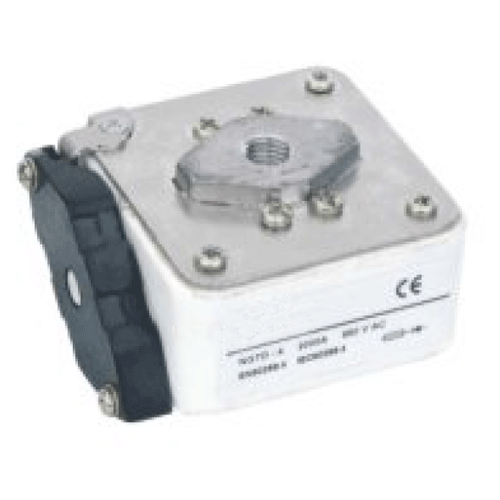

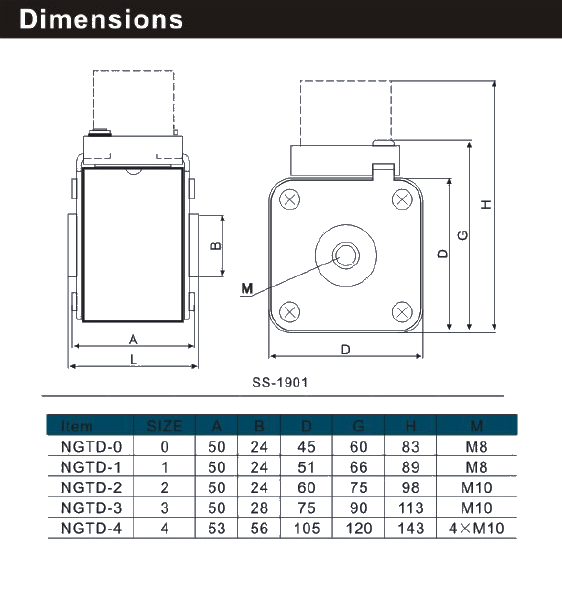

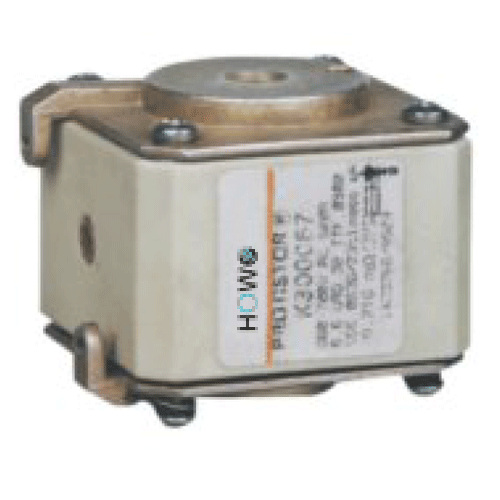

Fuse for the protection of Semiconductor device, NGTD Type |
up to 1000V AC | 100kA |
IEC60269 EN60269-4-1 |
aR/gR |

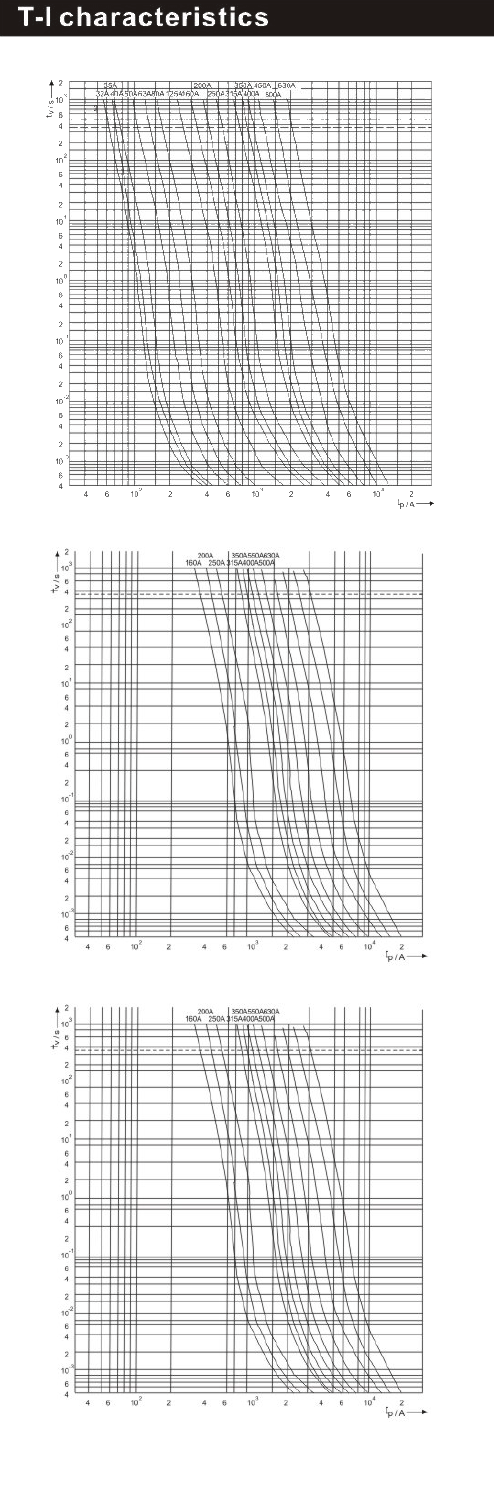

| Item | In(A) | I2t (A2S) | Power-loss | Order No. | |
|
Pre-arc |
Clearing at 690V |
||||
|
NGTD-0 690V |
40 | 45 | 280 | 9 | 8300040 |
| 50 | 80 | 530 | 11 | 8300050 | |
| 63 | 120 | 800 | 14 | 8300063 | |
| 80 | 190 | 1300 | 18 | 8300080 | |
| 100 | 380 | 3500 | 21 | 8300100 | |
| 125 | 600 | 4000 | 24 | 8300125 | |
| 160 | 1200 | 7600 | 26 | 8300160 | |
| 200 | 2400 | 16000 | 30 | 8300200 | |
| 250 | 4200 | 29000 | 38 | 8300250 | |
| 315 | 7500 | 48000 | 42 | 8300315 | |
| 350 | 10000 | 70000 | 48 | 8300350 | |
| 400 | 16000 | 110000 | 52 | 8300400 | |
| 450 | 22000 | 150000 | 56 | 8300450 | |
| 500 | 26000 | 180000 | 64 | 8300500 | |
| 550 | 36000 | 270000 | 76 | 8300550 | |
|
NGTD-1 690V |
200 | 1700 | 13000 | 46 | 8310200 |
| 250 | 3200 | 22000 | 49 | 8310250 | |
| 300 | 5800 | 35000 | 54 | 8310300 | |
| 315 | 6400 | 44000 | 58 | 8310315 | |
| 350 | 8700 | 61000 | 62 | 8310350 | |
| 400 | 14000 | 92000 | 67 | 8310400 | |
| 450 | 18000 | 125000 | 71 | 8310450 | |
| 500 | 26000 | 180000 | 74 | 8310500 | |
| 550 | 35000 | 240000 | 80 | 8310550 | |
| 630 | 42000 | 290000 | 84 | 8310630 | |
| 700 | 62000 | 42000 | 88 | 8310700 | |
| 800 | 98000 | 76000 | 90 | 8310800 | |
|
NGTD-2 |
125 | 400 | 3500 | 45 | 8320125 |
| 160 | 1000 | 8500 | 49 | 8320160 | |
| 200 | 1900 | 14000 | 52 | 8320200 | |
| 250 | 4500 | 30000 | 56 | 8320250 | |
| 300 | 5500 | 45000 | 50 | 8320300 | |
| 315 | 6700 | 60000 | 55 | 8320315 | |
| 400 | 9800 | 70000 | 60 | 8320400 | |
| 450 | 13000 | 98000 | 65 | 8320450 | |
| 500 | 20000 | 150000 | 68 | 8320500 | |
| 560 | 27000 | 200000 | 72 | 8320560 | |
| 630 | 40000 | 280000 | 78 | 8320630 | |
| 700 | 60600 | 410000 | 82 | 8320700 | |
| 800 | 88000 | 590000 | 89 | 8320800 | |
| 900 | 120000 | 850000 | 97 | 8320900 | |
| 1000 | 185000 | 1140000 | 110 | 8321000 | |
| 1250 | 380000 | 2100000 | 120 | 8321250 | |
|
NGTD-3 |
315 | 5000 | 540000 | 75 | 8330315 |
| 350 | 7500 | 630000 | 78 | 8330350 | |
| 400 | 9100 | 78000 | 82 | 8330400 | |
| 450 | 12000 | 88000 | 88 | 8330450 | |
| 500 | 15000 | 100000 | 92 | 8330500 | |
| 560 | 20000 | 140000 | 96 | 8330560 | |
| 630 | 32000 | 230000 | 100 | 8330630 | |
| 700 | 45000 | 310000 | 105 | 8330700 | |
| 800 | 70000 | 450000 | 110 | 8330800 | |
| 900 | 100000 | 650000 | 115 | 8330900 | |
| 1000 | 130000 | 900000 | 121 | 8331000 | |
| 1250 | 280000 | 1800000 | 124 | 8331250 | |
| 1400 | 380000 | 2400000 | 130 | 8331400 | |
| 1500 | 420000 | 3900000 | 140 | 8331500 | |
| 1600 | 590000 | 4100000 | 151 | 8331600 | |
| 1800 | 850000 | 5900000 | 160 | 8331800 | |
| 2000 | 980000 | 6500000 | 167 | 8332000 | |
|
NGTD-4 |
1000 | 80000 | 500000 | 168 | 8341000 |
| 1250 | 150000 | 985000 | 195 | 8341250 | |
| 1400 | 210000 | 140000 | 205 | 8341400 | |
| 1600 | 300000 | 210000 | 230 | 8341600 | |
| 2000 | 600000 | 389000 | 250 | 8342000 | |
| 2500 | 1200000 | 7860000 | 270 | 8342500 | |
| 3000 | 2000000 | 14000000 | 300 | 8343000 | |
| 3500 | 3800000 | 22800000 | 320 | 8343500 | |
| 4000 | 4800000 | 29800000 | 350 | 8344000 | |
