| Item | Rated voltage | Rated breaking capacity | Standard specifications |
|
Semiconductor Protection, RGS3 (LSCA) Type |
240V AC 120V DC |
100kA |
IEC60269-4-1 BS88-4 |
| Item | In(A) |
Order No. |

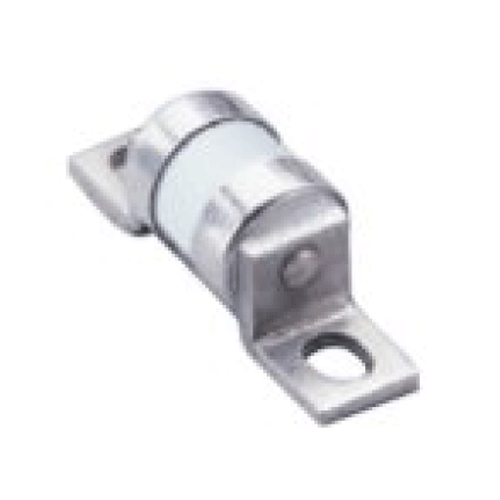

| RGS30 Fuse Link | ||
|
RGS30 |
10 | 8510010 |
| 12 | 8510012 | |
| 16 | 8510016 | |
| 20 | 8510020 | |
| 25 | 8510025 | |
| 30 | 8510030 | |
| 32 | 8510032 | |
| 40 | 8510040 | |
| 50 | 8510050 | |
| 60 | 8510060 | |
| 63 | 8510063 | |
| 70 | 8510070 | |
| 75 | 8510075 | |
| 80 | 8510080 | |
| 85 | 8510085 | |
| 100 | 8510100 | |

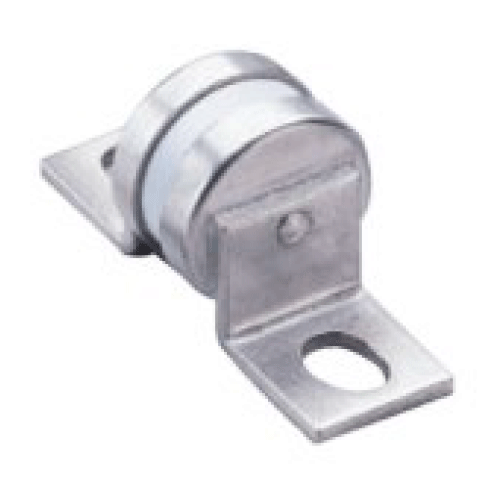

| RGS31 Fuse Link | ||
|
RGS31 |
125 | 8511125 |
| 140 | 8511140 | |
| 150 | 8511150 | |
| 160 | 8511160 | |
| 175 | 8511175 | |
| 180 | 8511180 | |
| 200 | 8511200 | |
| 225 | 8511225 | |
| 250 | 8511250 | |
| 260 | 8511260 | |
| 300 | 8511300 | |
| 315 | 8511315 | |
| 350 | 8511350 | |
| 355 | 8511355 | |
| 400 | 8511400 | |
| 450 | 8511450 | |

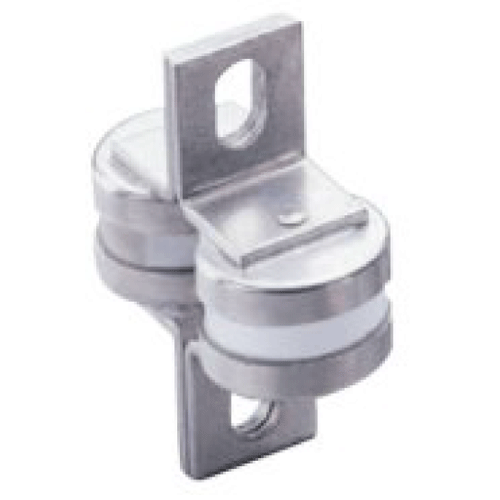

| RGS32 Fuse Link | ||
|
RGS32 |
300 | 8512300 |
| 315 | 8512315 | |
| 325 | 8512325 | |
| 350 | 8512350 | |
| 355 | 8512355 | |
| 400 | 8512400 | |
| 450 | 8512450 | |
| 500 | 8512500 | |
| 550 | 8512550 | |
| 600 | 8512600 | |
| 630 | 8512630 | |
| 710 | 8512710 | |
| 800 | 8512800 | |
| 900 | 8512900 | |
