| Item | Rated voltage | Rated breaking capacity | Standard specifications |
|
Semiconductor Protection, RGS4 (LSCB) Type |
690V AC 350V DC |
100kA |
IEC60269-4-1 BS88-4 |
| Item | In(A) |
Order No. |
| RGS41 Fuse Link | ||
|

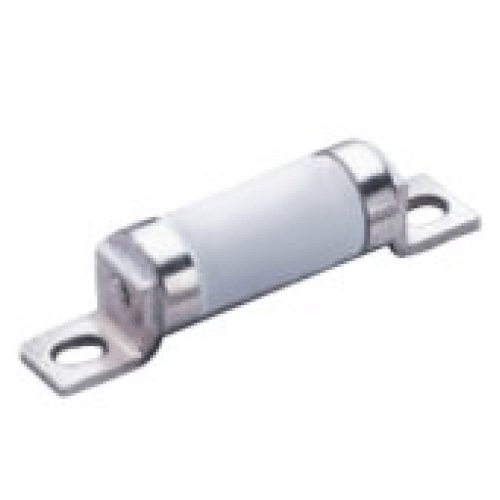

RGS41 |
10 | 8520010 |
| 16 | 8520016 | |
| 20 | 8520020 | |
| 25 | 8520025 | |
| 30 | 8520030 | |
| 32 | 8520032 | |
| 40 | 8520040 | |
| 45 | 8520045 | |
| 50 | 8520050 | |
| 55 | 8520055 | |
| 60 | 8520060 | |
| 63 | 8520063 | |
| 70 | 8520070 | |
| 71 | 8520071 | |
| 75 | 8520075 | |
| 80 | 8520080 | |
| 90 | 8520090 | |
| 100 | 8520100 | |
| RGS41 Fuse Link | ||
|

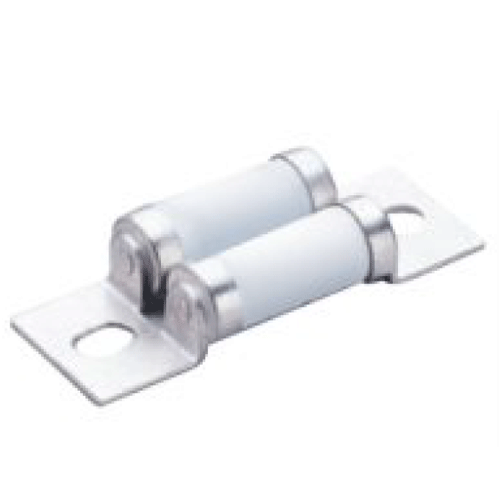

RGS42 |
65 | 8521065 |
| 75 | 8521075 | |
| 85 | 8521085 | |
| 90 | 8521090 | |
| 100 | 8521100 | |
| 110 | 8521110 | |
| 120 | 8521120 | |
| 125 | 8521125 | |
| 140 | 8521140 | |
| 150 | 8521150 | |
| 160 | 8521160 | |
| 180 | 8521180 | |
| 200 | 8521200 | |
