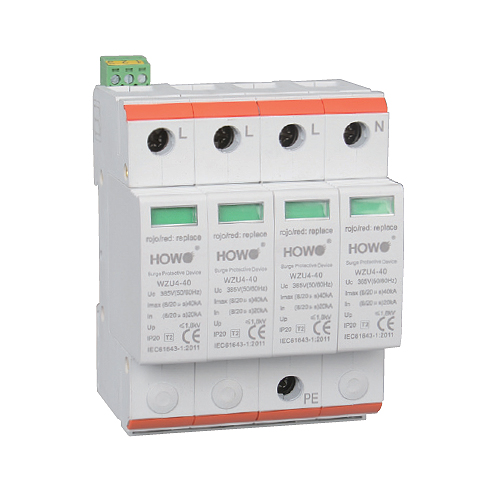

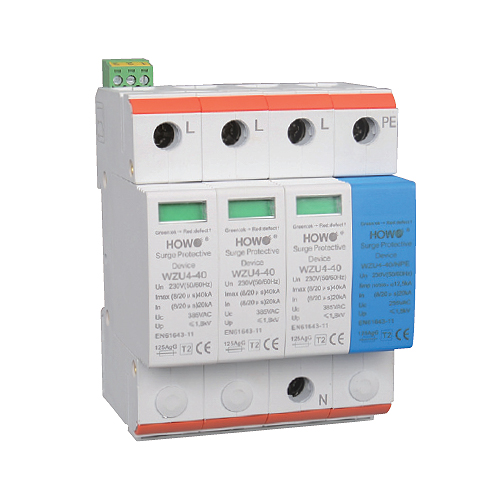

The type 2 surge protective device are applicable to discharge overvoltage caused by switch-type (8/20μs wave-form) over currents. The type 2 arresters must be installed into sub-distribution boards (at condominium into distribution boards of flats) after main distribution boards containing type 1 arresters.
For proper operation at least 10- 15 m cable or wire must be placed between type 1 and type 2 arresters. Otherwise a decoupling coil has to be installed between the two devices. These protectors are modular types with changeable insert; the auxiliary contact is built-in into the housing of the device.
For proper operation at least 10- 15 m cable or wire must be placed between type 1 and type 2 arresters. Otherwise a decoupling coil has to be installed between the two devices. These protectors are modular types with changeable insert; the auxiliary contact is built-in into the housing of the device.
| Howo code | Number of poles | W (mm) | Nominal discharge (8/20μs) In | Maximal discharge current (8/20μs) Imax | Color | Type |
| WZU4-40/1P | 1P | 18 | 20kA | 40kA | grey | changeable |
| WZU4-40/2P | 2P | 36 | 20kA | 40kA | grey | changeable |
| WZU4-40/3P | 3P | 54 | 20kA | 40kA | grey | changeable |
| WZU4-40/1P+N/PE | 1P+N/PE | 36 | 20kA | 40kA | grey | changeable |
| WZU4-40/2P+N/PE | 2P+N/PE | 54 | 20kA | 40kA | grey | changeable |
| WZU4-40/3P+N/PE | 3P+N/PE | 72 | 20kA | 40kA | grey | changeable |
| WZU4-40/4P | 4P | 72 | 20kA | 40kA | grey | changeable |
| WZU4-30/1P | 1P | 18 | 15kA | 30kA | grey | changeable |
| WZU4-30/2P | 2P | 36 | 15kA | 30kA | grey | changeable |
| WZU4-30/3P | 3P | 54 | 15kA | 30kA | grey | changeable |
| WZU4-30/1P+N/PE | 1P+N/PE | 36 | 15kA | 30kA | grey | changeable |
| WZU4-30/2P+N/PE | 2P+N/PE | 54 | 15kA | 30kA | grey | changeable |
| WZU4-30/3P+N/PE | 3P+N/PE | 72 | 15kA | 30kA | grey | changeable |
| WZU4-30/4P | 4P | 72 | 15kA | 30kA | grey | changeable |
| WZU4-20/1P | 1P | 18 | 10kA | 20kA | grey | changeable |
| WZU4-20/2P | 2P | 36 | 10kA | 20kA | grey | changeable |
| WZU4-20/3P | 3P | 54 | 10kA | 20kA | grey | changeable |
| WZU4-20/1P+N/PE | 1P+N/PE | 36 | 10kA | 20kA | grey | changeable |
| WZU4-20/2P+N/PE | 2P+N/PE | 54 | 10kA | 20kA | grey | changeable |
| WZU4-20/3P+N/PE | 3P+N/PE | 72 | 10kA | 20kA | grey | changeable |
| WZU4-20/4P | 4P | 72 | 10kA | 20kA | grey | changeable |
| Howo code | WZU4-40 | WZU4-30 | WZU4-20 |
| Rated voltage | 230V, 3x230/400V | ||
| Network system | TN, TT, IT | ||
| Highest continuous voltage (Uc) | 385/440V | 385V | 385/440V |
| Protection level (Up) | 1,8kV | 1,6kV | 1,5kV |
| Follow current limitation | 125A gG | ||
| Follow current extinguishing capability | 10 kA/AC | ||
| Ambient temperature | -40 ℃ ... +55 ℃ | ||
| Type of terminal | elevator clamp | ||
| Integrated protection devices | Varistor, thermal fuse | ||
| Mounting | on 7.5 × 35 mm size mounting rail (EN 50022) | ||
| Auxiliary status contact | Integrated (1 pc NO contact) | ||
| Arresting signal | Red optical signal | ||
| Terminal capacity | solid: 6 - 35 mm² flexible: 6 - 25 mm² | ||
| Flammability of housing | UL94-V0 | ||
