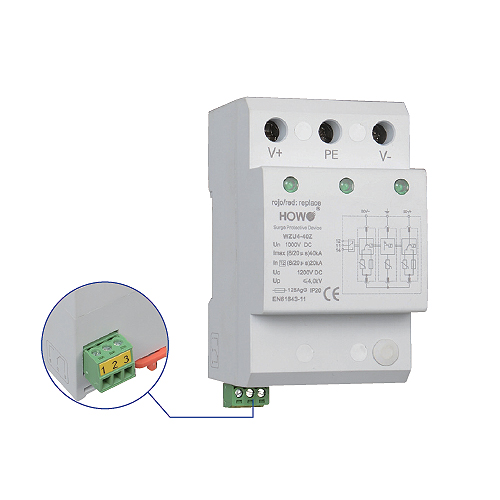

The function of lightning and surge protection systems is to protect the devices, functional isolations and overvoltage-sensitive consumer equipments of energy distribution systems against all lightning and overvoltage damages.
Due to the wide energy, voltage and frequency range of overvoltage it is advisable to develop one coordinative protection system covering the whole building;the outdoor lightning protection system is generally not sufficient to eliminate such malfunctions.
At most of types, the defected protection device can be made operative again by changing the damaged insert; these variants are also equipped with both optical operation signal and auxiliary status contact.
Due to the wide energy, voltage and frequency range of overvoltage it is advisable to develop one coordinative protection system covering the whole building;the outdoor lightning protection system is generally not sufficient to eliminate such malfunctions.
At most of types, the defected protection device can be made operative again by changing the damaged insert; these variants are also equipped with both optical operation signal and auxiliary status contact.
| Type | WZU4-40Z-600V | WZU4-40Z-800V |
WZU4-40Z-1000V |
||
|
Rated voltage (max.conlinuous voltage) |
L/N |
Uc |
600VDC 800VDC |
800VDC 1000VDC |
1000VDC 1200VDC |
|
Nominal discharge current(8/20) |
L/N N/PE |
In | 20kA | 20kA | 20kA |
|
Max.discharge current(8/20) |
L/N N/PE |
Imax | 40kA | 40kA | 40kA |
|
Voltagetection |
L/N | Uc | ≤3000V | ≤4000V | ≤5000V |
| Voltage protection Level at Ia |
L/N N/PE |
Uf | ≤1500V | ≤2000V | ≤3000V |
| Response time |
L/N N/PE |
tA | ≤25ns | ≤25ns | ≤25ns |
| Max.backup fuse | 125AgL/gG | 125AgL/gG | 125AgL/gG | ||
| Operating temperaturw range | g | -40℃...+80℃ | -40℃...+80℃ | -40℃...+80℃ | |
| Follow current extinguishing capability at Uc | 100Arms | ||||
| Cross-section area | 1.5mm² ~25mm² solid/35mm² flexible | ||||
| Mountng on | 35mm DIN rail | ||||
| Enclosure material | Thermoplastic, UL94-V0 | ||||
| Dimension | 4 mods | ||||
| Test standards | YD/T 1235.1-2002;GB 18802.1-2011;IEC 61643-1:2011-02 | ||||
| Certification | CE(LVD,EMC) | ||||
| Type of remote signalling contact | Un/I | Switching contact | |||
| Switching capacity | 250V/0.1A, 125V/0.2A, 75V/0.5A | ||||
| Cross-sectional area for remote signalling contact | Max.1.5mm² solid/flexible | ||||
| Continuous use of voltage | Uc:600V, 800V, 1000V, 1200V | ||||
| The biggest impact current |
Imax:40kA |
||||
| Installation | 3P | ||||
| Packing Unit | 1pc(s) | ||||
