TY230FML must be installed as close to the protected device as possible. These arresters are secondary protection devices and applicable to protection against discharge overvoltage occurred by switch-type (8/20μs wave-form) over-currents. These arrestershave compact (block type) construction.
Attention!
The type 3 devices alone cannot provide complete protection of electric devices against overvoltage!
Attention!
The type 3 devices alone cannot provide complete protection of electric devices against overvoltage!
| Howo code | Number of poles |
W (mm) |
Nominal discharge (8/20μs) In | Maximal discharge current (8/20μs) Imax | Color | Type |

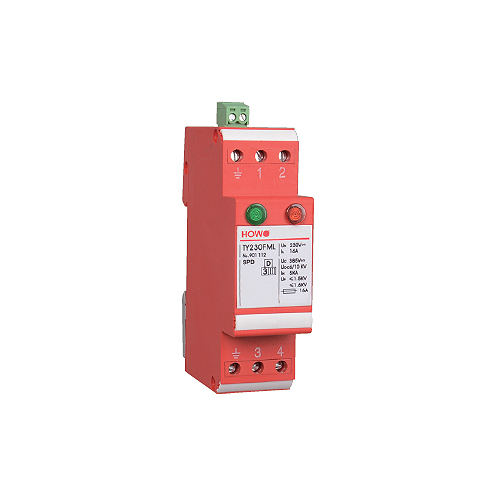

| TY230FML-10-1P+N/PE | 1P+N/PE | 36 | 5 kA | 10kA | red | modular |

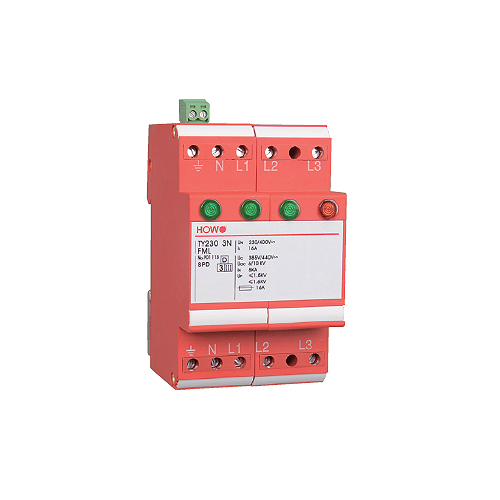

| TY230FML-10-3P+N/PE | 3P+N/PE | 72 | 5 kA | 10kA | red | modular |
| Howo code | TY230FML-10-1P+N/PE | TY230FML-10-3P+N/PE | TY230FML-5-1P+N/PE |
| Type | Modular | Modular | Build-in type |
| Main voltage | 230V, 50Hz; 1~ | 3x230/400 V, 50Hz; 3~ | 230V, 50Hz; 1~ |
| Network system | TN, TT | TN, IT | TN, IT |
| Highest continuous voltage(Uc) | 385/440V | 255V AC | |
| Rated thermal current (In) | 16A | ||
| Protection level (Up) | 1,5kV | ||
| Follow current limitation | 16A gG | ||
| Nominal discharge current | 10kA | ||
| Ambient temperature | -40℃ ... +55℃ | -40℃ ... +55℃ | -20℃ ... +55℃ |
| Type of terminal | elevator clamp | ||
| Integrated protection devices | spark gap, Varistor, thermal fuse | ||
| Auxiliary status contact | integrated (1 pc NC contact) | ||
| Arresting signal | Red optical signal | acoustic | |
| Terminal capacity | Solid: 1,5-4 mm² Flexible: 1,5-2,5 mm² | 3pcs 1,5 mm² integrated wire | |
| Flammability of housing | UL94-V0 | ||
