For well coordinated operation between the type 1 lightning arrester and the type 2 surge arrester, in complex lightning and overvoltage
protection systems sufficient value of cable/wire impedance must be provided to enable voltage drop.
This condition is satisfied if the length of cable/wire is at least 10 – 15 meters. If this condition cannot be satisfied, an inductive reactance
(decoupling coil) must be used.
protection systems sufficient value of cable/wire impedance must be provided to enable voltage drop.
This condition is satisfied if the length of cable/wire is at least 10 – 15 meters. If this condition cannot be satisfied, an inductive reactance
(decoupling coil) must be used.
| Howo code | Denomination |

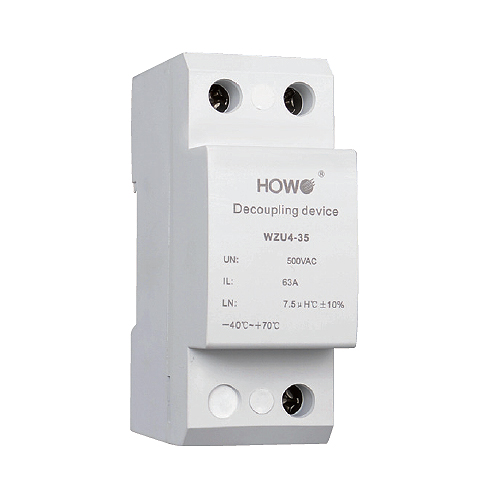

| WZU4-35 | decoupling coil |
| Rated voltage | 500V AC/DC |
| Rated frequency | 50Hz |
| Rated thermal current | 35A |
| Rated inductance | 7.5μH±10% |
| Ballast fuse | 35A gL/g |
| Rated short circuit breaking capacity using max. ballast fuse | 50kA RMS |
| Operational ambient temperature | -40 ℃ … +115 ℃ |
| Terminal capacity | min. 1.5 mm2 solid/flexible, max 25 mm2 flexible |
| Mounting | on mounting rails according to EN50022 |
| Housing material | hot-melt plastic, UL 94 V0 |
| Width | 2 modules |
