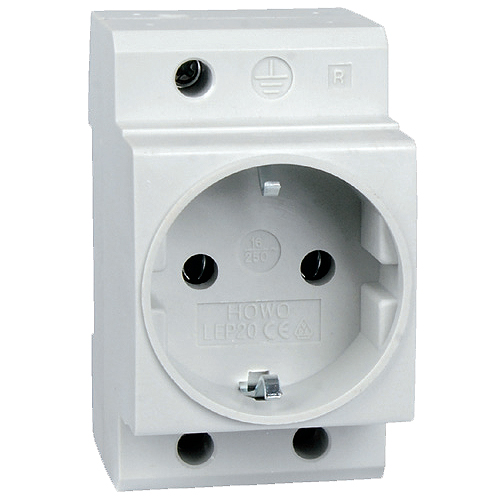

LEP20 Modular Socket can be used together with our modular products for connection of mobile devices, tools or electric and electronic nonmodular equipments directly inside civil and industrial switchboards.
| Howo code | Rated current (A) | Standard | Width (mm) | Connection capacity |
| LEP20 | 10, 16, 25 | Germany | 44.5 | ≤ 6mm2 |
| Frequency | 50 or 60Hz |
| Electric life | 5000 times |
| Rated insulation voltage Ui | 500V |
| Rated impulse withstand voltage Uimp | 5000V |
| Dielectric test voltage at ind. Freq. For 1 min. | 2.8kV |
| Mounting category | Ⅱ, Ⅲ |
| Pollution degree | 2 |
| Protection class | IP20 |
| Standard mounting | 35mm DIN rail |
| Ambient temperature | -5℃ to +40℃ |
| Storage temperature | -25℃ to +70℃ |
