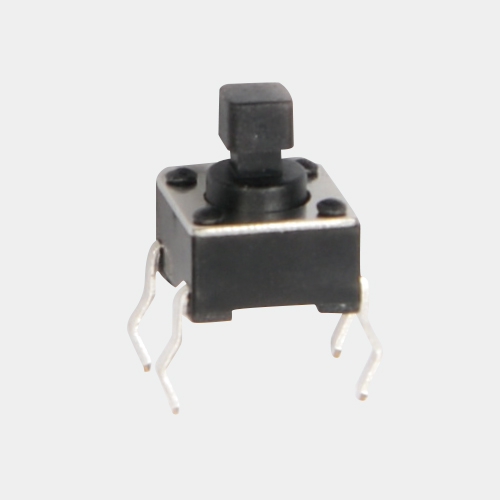

KAN0610-1
KAN0610
Category: Tact Switch

Hotline: +86-577-62731262

View My Inquiry Basket

Add to Inquiry Basket

Print This Page

E-Mail To Us

Bookmark

Send Inquiry   Download PDF
1. Operating mode: mechanical
2. Rated voltage/current: DC12V/50mA
3. Operation range: 0 .25±0.10mm
4. Operating force: please refer to Table 5
5. Contact resistance: ≤50mΩ
6. Mechanical life: >100,000 tiniest
7. Insulation resistance: ≥100MΩ
8. Withstand voltage: 250V AC/lmin
