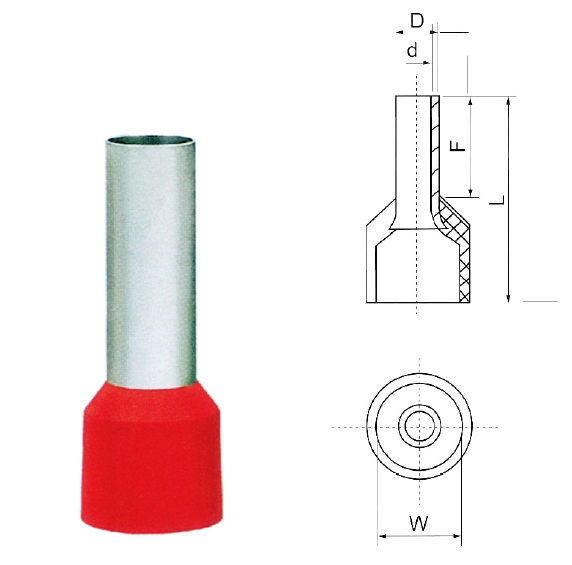

| HOWO code | Dimension(F/L/D/d/W) | leaa section(AWG/mm2) |
| E0508 | 8/14/1.3/1.0/2.6 | 22#/0.5 |
| E7508 | 8/14.6/1.5/1.2/2.8 | 20#/0.75 |
| E1008 | 8/14.6/1.7/1.4/3.0 | 18#1.0 |
| E1508 | 8/14.6/2.0/1.7/3.5 | 16#1.5 |
| E2508 | 8/15.2/2.6/2.3/4.0 | 14#2.5 |
| E4009 | 9/16.5/3.2/2.8/4.4 | 12#/4.0 |
| E1012 | 12/21.5/4.9/4.5/7.6 | 7#10 |
Maximun voltage: Ui=300V
Material: red copper-pipe
Insulation material: nylon
