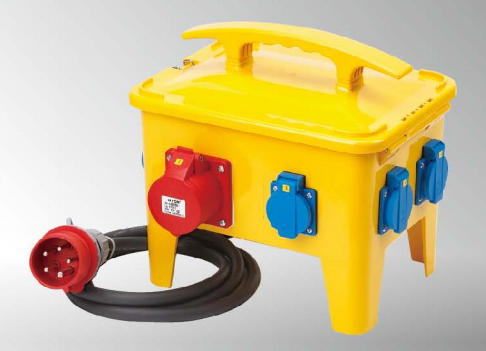

A12MA01-4 |
|
| Dimension | 293.7*220.0*279.0 |
| Input: | 1 CEE plug HTN015 5G2.5sq mm cable 2.2M |
| Output: |
2 CEE Socket HTN415 6 Schuko Sockets (DIN 49440) 16A 2P+E 230V~ IP44 |
| Protection fuse |
1 RCD 40A 4P 0.03A 400V~ 3 MCB 16A 1P 230V~ 1MCB 16A 3P 400V~ |
| ● The box could include 12pcs of 1P MCB( the width of 1P MCB is 18mm) | |
| ● The Socket(SCHUKO) could be changed to British,French,Danish,Swiss and Australian Sockets | |
★ Pre-wired for Installation
★ Fusing under the cover
★ Can be locked by a padlock
★ Protection degree: IP44 (splashproof)
★ Material: Flame Retardant Thermoplastic RoHS Reach
★ Operation Temperature: -25℃~+40℃
★ Certificates: S,CB,CE,TUV,ISO9001:2008,RoHS,REACH
★ Standards: IEC/EN60439-1,IEC/EN60439-4
★ Package: Polybag + 1pcs/Inner Box + 2pcs/Export carton
> Distribution boxes for flexible current supply, portable and handy,;
> High resistance to weathering and chemicals;
> All combinations are tested for electrical safety and quality;
> IP44,IP55,IP66 protection degree against dust and liquid bodies;
> IK8 mechanical protection degree;
> High quality thermoplastic material;
> Available component preset as requested;
> Widely used in the following sites, such as:Repair, extension and demolition, work on existing buildings,
Construction sites, Exhibition center, Factories…
All of our products, are manufactured according to the international standard IEC60439-1,IEC60439-4,IEC60309-1, IEC60309-2, and they are also in compliance with the national standard GB/ T11918-2001 & GB/ T11919-2001. and our products have achieved CE approval, CB test approval and has owned S certification of SEMKO. And we have obtained more than four patents technology on this field in China.
