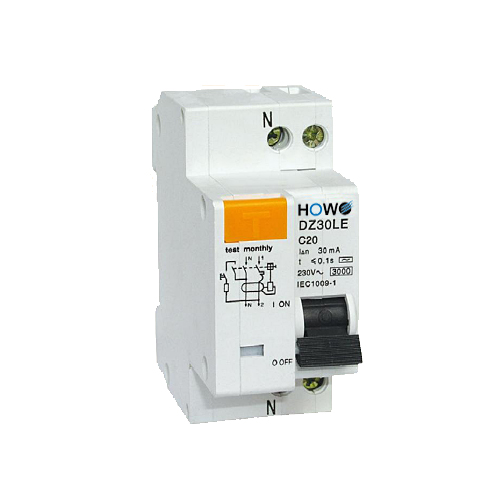

DZ30L(DPNL) residual circuit breaker with overload protection has the meirt of small size.
It is used to protect the circuit against overload and short circuit.When somebody gets
an eletrical shock or the residual current of the circuit exceeds the fixed value,the RCCB
can cut off the power within the time of 0.1s automatically protecting the personal
safety and preventing the equipment from the fault resulted from the residual current.
| Howo code | DZ30L |
| Poles | P+N |
| Rated voltage(Un) | 230v |
| Rated current(In) | 6,10,16,20,25,32,40A |
| Characteristic curve | IEC60898B,C |
| Leakage motion current(IΔn) | 30mA |
| Leakage dead time(IΔno) | 15mA |
| Leakage motion time | ≤0.1s |
|
Breaking capacity(Icn) |
4.5KA |
| Terminal protection | IP20 |
