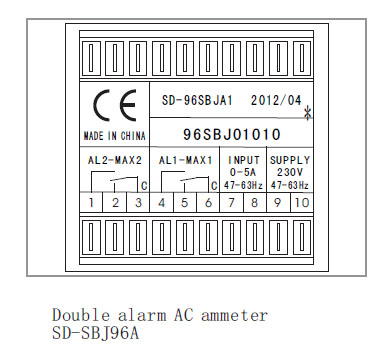

Model: SD-SBJ96A Double alarm AC Ammeter

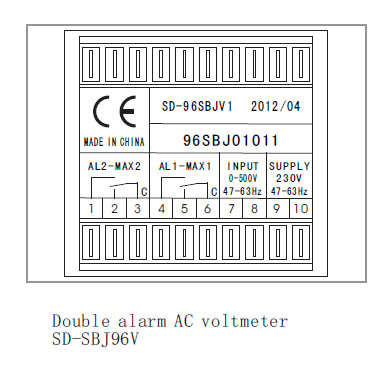

Model: SD-SBJ96V Double alarm AC Voltmeter
Accuracy class: 1.5. Alarm accuracy 2.5.
For through current: 100mA 200mA 300mA 500mA 1A 2A 3A 5A 6A.
For transformation ratio: The meters should be used with a current transformer of which primary current is 10A 15A 20A 25A 30A 40A 50A 60A 75A 10…10KA and external secondary current is 1A or 5A.
Overload rate of ammeters: ①non-overload
For through voltage: 100V 150V 200V 250V 300V 400V 500V 600V.
For transformation ratio: The meters should be used with a voltage transformer of which primary voltage is 450V 500V 60…450KV and external secondary voltage is 100V.
Overload rate of voltmeters: ①non-overload
Rated auxiliary power supply: AC110V AC220V AC380V Frequency 50/60Hz.
Alarm type: A1 two-way up alarm A2 one-way up alarm and one-way low alarm.
Alarm switch output: contact capacity AC250V/8A DC30V/8A.
Product performance: All the meters are equipped with pure white silk-screen printing dial scale. The movement is made of high-performance stacked magnet ring and permanent magnet steel so that it is vibration-resistant and heat-resistant. The case is made of PC plastics, of which the resistant temperature can be up to 120℃. The resistant voltage is higher than 2000V. The meter is easy to install with high-strengthen plastics grip piece by pushing so that it is of high immobility.
Measurement fearures: Pointer double alarm meters are widely used in energy management systems, converting station automation, electricity distribution network automation, industrial automation and big, medium and small switch cabinets. The advantages are easy installment and connection, high measurement accuracy, high working stability and two-way alarm controls parameters can be set on the spot.
