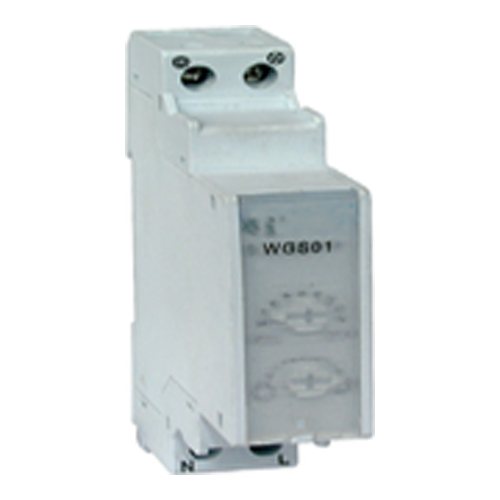

WGS01 staircase switch(time delay switch) is used in the circuit with AC 50/60Hz,
rated voltage 230V, rated current less than 10A to break lighting and electrical appliance
automatically, it is mainly used to control the corridor or stairs lighters of dwelling and
commercial building, ect. It is CE approved.
rated voltage 230V, rated current less than 10A to break lighting and electrical appliance
automatically, it is mainly used to control the corridor or stairs lighters of dwelling and
commercial building, ect. It is CE approved.

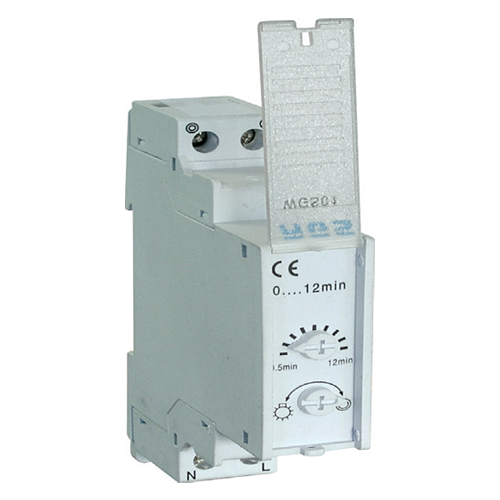

a. The switch on way and the range of delay time can be adjusted freely. It is equiped
with contirnuous switch on and time delay break devices. The range of time delay
break device can be adjusted between 0.5~12mins.
b. It is convenient to use, act automatically and save energy. It will light once we press
on button, and it will break automatically after we leave in several minutes.
c. One staircase switch can control 100 pcs 20W lamps at the same time.
d. Easy mounting. The mounting way is normal rail way mounting same as MCB. It can
be mounted in distribution box together with MCB.
with contirnuous switch on and time delay break devices. The range of time delay
break device can be adjusted between 0.5~12mins.
b. It is convenient to use, act automatically and save energy. It will light once we press
on button, and it will break automatically after we leave in several minutes.
c. One staircase switch can control 100 pcs 20W lamps at the same time.
d. Easy mounting. The mounting way is normal rail way mounting same as MCB. It can
be mounted in distribution box together with MCB.
| Howo code | WGS01 |
| Rated voltage Ui(Ue) | 230V |
| Rated current(In) | 10A |
| Delayed time range | 0.5~12 MIN |
| Max Power | 2000W |
