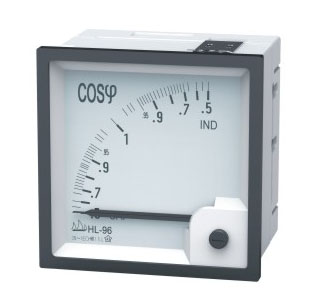

Model: HL-APF96COSφ Pointer mono-phase power-factor meter

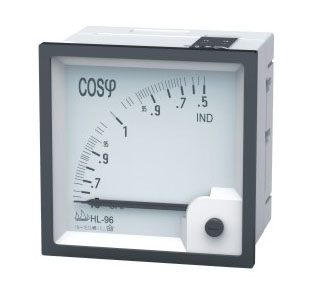

Model: HL-BPF96COSφ Pointer three-phase power-factor meter
Accuracy class: 2.5.
Range specification: 0.5lead-1.0-0.5lag 0.4lead-1.0-0.4lag
Current specification: 1A 5A 10A
Voltage specification: 100V 110V 220V 380V 415V 440V
Product performance: All the meters are equipped with pure white silk-screen printing dial scale. The movement is made of high-performance flame retardant PC plastics, of which the flame retardant class is V-0, resistant voltage up to 4300V and resistant heat higher than 120℃. The meter is easy to install with imported high-strengh stainless steel by stamping so that it is of high immobility. The protective cover adopts the whole area design, and the clamping structure which is easy to assemble and dissemble, make the meter up to the rules of international standard IEC61010-1.
Principles of measurement and the fearures: Each pointer power-factor meter consists of a magneto-electrical meter header and a power-factor converter, mainly used for measurement of cosine of phase difference between current and voltage (Namely, power factor) in AC circuit. The advantage simple structure, convenient measurement, as well as insensibility to temperature and external magnetic field, while the disavantage is poor frequency adaptation. The frequency should be marked out in ordering. When power-factor signals are converted into DC signals by the converter, the following measurement principles are the same as that of magneto-electrical meters.
