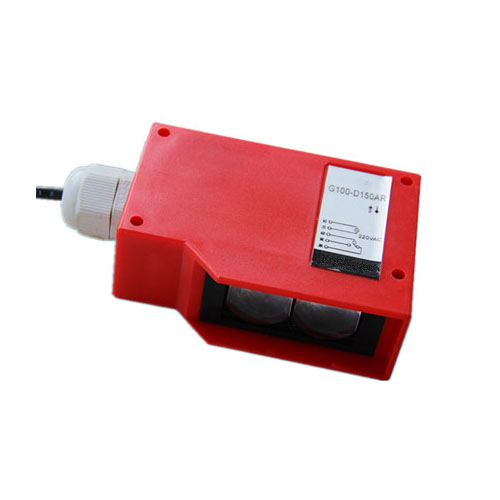

Built-in Photoelectric Sensor for G100 Amplifier
Category: Photoelectric Sensor
Hotline: +86-577-62731262
View My Inquiry Basket
Add to Inquiry Basket
Print This Page
E-Mail To Us
Bookmark
Send Inquiry
| Detection mode | Scattered reflection type | Mirror-reflection type | Inter-radiating type | ||||
| Output mode | NPN | PNP | NPN | PNP | NPN | PNP | |
|
DC Power |
NO | G100-D150NK | G100-D150PK | G100-R7NK | G100-R7PK | G100-T12NK | G100-T12PK |
| NC | G100-D150NB | G100-D150PB | G100-R7NB | G100-R7PB | G100-T12NB | G100-T12PB | |
| NO+NC | G100-D150NH | G100-D150PH | G100-R7NH | G100-R7PH | G100-T12NH | G100-T12PH | |
| Relay contact | G100-D150RH | G100-R7RH | G100-T12RH | ||||
| AC Power | Relay contact | G100-D150AR | G100-R7AR | G100-T12AR | |||
| Two-wire system NO | G100-D150AK | G100-R7AK | G100-T12AK | ||||
| Two-wire system NC | G100-D150AB | G100-R7AB | G100-T12AB | ||||
| Detecting distance | 20-200cm | 7m | 12m | ||||
| Output current | The transistor output current is 200mA, and 3A for relay. | ||||||
| Supply voltage | DC10-30V+10% pulsating(P-P) below 10%, AC24-240V+10% 50...60Hz | ||||||
| Current consumption | below 40mA below 3W for SCR | ||||||
| Detected objects | Translucent body and transparent body | Translucent body with the width of above 50mm | Opaque body with the width of above 25mm | ||||
| Angle of direction | Body:1-5° Reflecting plate:25° | 3-10° | |||||
| Responce time | Below 2ms for (DC power), and below 20ms for (AC power) | ||||||
| Sensitivity adjustment | The adjustable button is offered | ||||||
| Light source | Infrared | ||||||
| Ambient illumination | The illumination of lighted side is below 3000IX (electric incandescent lamp) | ||||||
| Ambient temperature | In the opetation: -25℃-+55℃ (unfrozen), while in the state of rest:-30℃-+70℃ | ||||||
| Housing material | Aluminum casting | ||||||
| Cable length | 2m (can be added to 100m) | ||||||
| Protection degree | IP67 | ||||||
