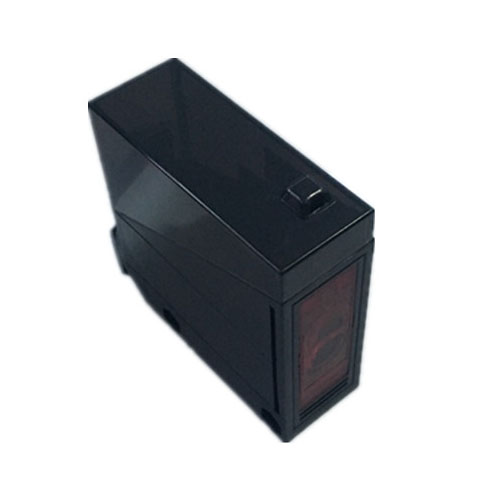

Built-in Photoelectric Sensor for G64 Amplifier
Category: Photoelectric Sensor
Hotline: +86-577-62731262
View My Inquiry Basket
Add to Inquiry Basket
Print This Page
E-Mail To Us
Bookmark
Send Inquiry
| Detection mode | Scattered reflection type | Mirror-reflection type | Inter-radiating type | ||||
| Output mode | NPN | PNP | NPN | PNP | NPN | PNP | |
|
DC Power |
NO | G64-D50NK | G64-D50PK | G64-R5NK | G64-R5PK | G64-T8NK | G64-T8PK |
| NC | G64-D50NB | G64-D50PB | G64-R5NB | G64-R5PB | G64-T8NB | G64-T8PB | |
| NO+NC | G64-D50NH | G64-D50PH | G64-R5NH | G64-R5PH | G64-T8NH | G64-T8PH | |
| Relay contact | G64-D50RH | G64-R5RH | G64-T8RH | ||||
| AC Power | Relay contact | G64-D50AR | G64-R5AR | G64-T8AR | |||
| Two-wire system NO | |||||||
| Two-wire system NC | |||||||
| Detecting distance | 10-50cm | 5m | 8m | ||||
| Output current | The transistor output current is 200mA, and 3A for relay. | ||||||
| Supply voltage | DC10-30V+10% pulsating(P-P) below 10%, AC24-240V+10% 50...60Hz | ||||||
| Current consumption | below 40mA | below 70mA | |||||
| Detected objects | Translucent body and transparent body | Translucent body with the width of above 10mm | Opaque body with the width of above 16mm | ||||
| Angle of direction | Body:1-5° Reflecting plate:25° | 3-10° | |||||
| Responce time | Below 2ms for (DC power), and below 20ms for (AC power) | ||||||
| Sensitivity adjustment | The adjustable button is offered | ||||||
| Light source | Infrared | ||||||
| Ambient illumination | The illumination of lighted side is below 3000IX (electric incandescent lamp) | ||||||
| Ambient temperature | In the opetation: -25℃-+55℃ (unfrozen), while in the state of rest:-30℃-+70℃ | ||||||
| Housing material | ABS resin | ||||||
| Cable length | 2m (can be added to 100m) | ||||||
| Protection degree | IP67 | ||||||
