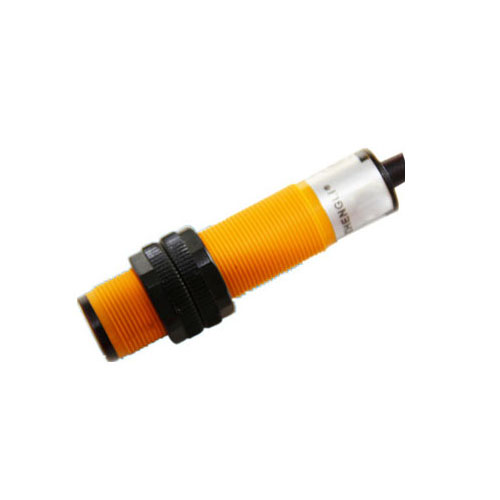

Built-in Photoelectric Sensor for G18 Amplifier
Category: Photoelectric Sensor
Hotline: +86-577-62731262
View My Inquiry Basket
Add to Inquiry Basket
Print This Page
E-Mail To Us
Bookmark
Send Inquiry
| Detection mode | Scattered reflection type | Mirror-reflection type | Inter-radiating type | ||||
| Output mode | NPN | PNP | NPN | PNP | NPN | PNP | |
|
DC Power |
NO | G18-D10NK | G18-D10PK | G18-R2NK | G18-R2PK | G18-T50NK | G18-T50PK |
| NC | G18-D10NB | G18-D10PB | G18-R2NB | G18-R2PB | G18-T50NB | G18-T50PB | |
| NO+NC | G18-D10NH | G18-D10PH | G18-R2NH | G18-R2PH | G18-T50NH | G18-T50PH | |
| Relay contact | |||||||
| AC Power | Relay contact | ||||||
| Two-wire system NO | G18-D10AK | G18-R2AK | |||||
| Two-wire system NC | G18-D10AB | G18-R2AB | |||||
| Detecting distance | 10cm | 2m | Infrared 3m, laser 50m | ||||
| Output current | The transistor output current is 200mA, and 200mA for SCR. | ||||||
| Supply voltage | DC10-30V+10% pulsating(P-P) below 10%, AC24-240V+10% 50...60Hz | ||||||
| Current consumption | DC power below 35mA below 3W for SCR | ||||||
| Detected objects | Translucent body and transparent body | Translucent body with the width of above 15mm | Opaque body with the width of above 25mm | ||||
| Angle of direction | Body:1-5° Reflecting plate:25° | 3-10° | |||||
| Responce time | Below 2ms for (DC power), and below 20ms for (AC power) | ||||||
| Sensitivity adjustment | |||||||
| Light source | Infrared | ||||||
| Ambient illumination | The illumination of lighted side is below 3000IX (electric incandescent lamp) | ||||||
| Ambient temperature | In the opetation: -25℃-+55℃ (unfrozen), while in the state of rest: -30℃-+70℃ | ||||||
| Housing material | ABS resin (we can supply metal also) | ||||||
| Cable length | 2m (can be added to 100m) | ||||||
| Protection degree | IP67 | ||||||
